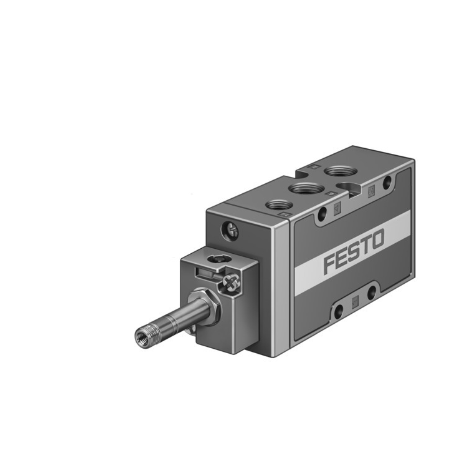

Air solenoid valve

MFH-5-1/4-B

Valve function

5/2, monostable

Standard nominal flow rate

1300 l/min

Pneumatic connection 1

G1/4

Actuation type

Electrical

Technical Data

• Valve function5/2, monostable

• Actuation typeElectrical

• Width32 mm

• Standard nominal flow rate1300 l/min

• Pneumatic working portG1/4

• Operating pressure0.2 MPa ... 1 MPa

• Operating pressure2 bar ... 10 bar

• Structural designPlate seat

• Reset methodMechanical spring

• Nominal width7 mm

• Width dimension33 mm

• Exhaust air functionWith flow control option

• Sealing principleSoft

• Mounting positionAny

• Manual overrideNon-detenting

• Type of controlPilot-controlled

• Pilot air supply portInternal

• Flow directionNon-reversible

• Symbol00991035

• LapUnderlap

• b-value0.29

• C value5.5 l/sbar

• Max. switching frequency3 Hz

• Switching time off36 ms

• On switching time12 ms

• Max. positive test pulse with 0 signal2200 μs

• Max. negative test pulse on 1 signal3700 μs

• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]

• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)

• Corrosion resistance class (CRC)1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Storage temperature-40 °C ... 60 °C

• Temperature of medium-10 °C ... 60 °C

• Ambient temperature-5 °C ... 40 °C

• Product weight300 g

• Electrical connectionVia F coil, to be ordered separately

• Type of mountingOptionally: On PR rail With through-hole

• Pilot exhaust air port 84M5

• Pneumatic connection 1G1/4

• Pneumatic connection 2G?

• Pneumatic connection 3G1/4

• Pneumatic connection 4G1/4

• Pneumatic connection 5G1/4

• Note on materialsRoHS-compliant

• Seals materialNBR TPE-U(PU)

• Housing materialDie-cast aluminum
