日本W(wǎng)ADECO微波物位計MWS-CRX-1/MWS-CTX-1
日本W(wǎng)ADECO微波物位計MWS-CRX-1/MWS-CTX-1
Microwave Sensor
MWS-CTX/CRX-1

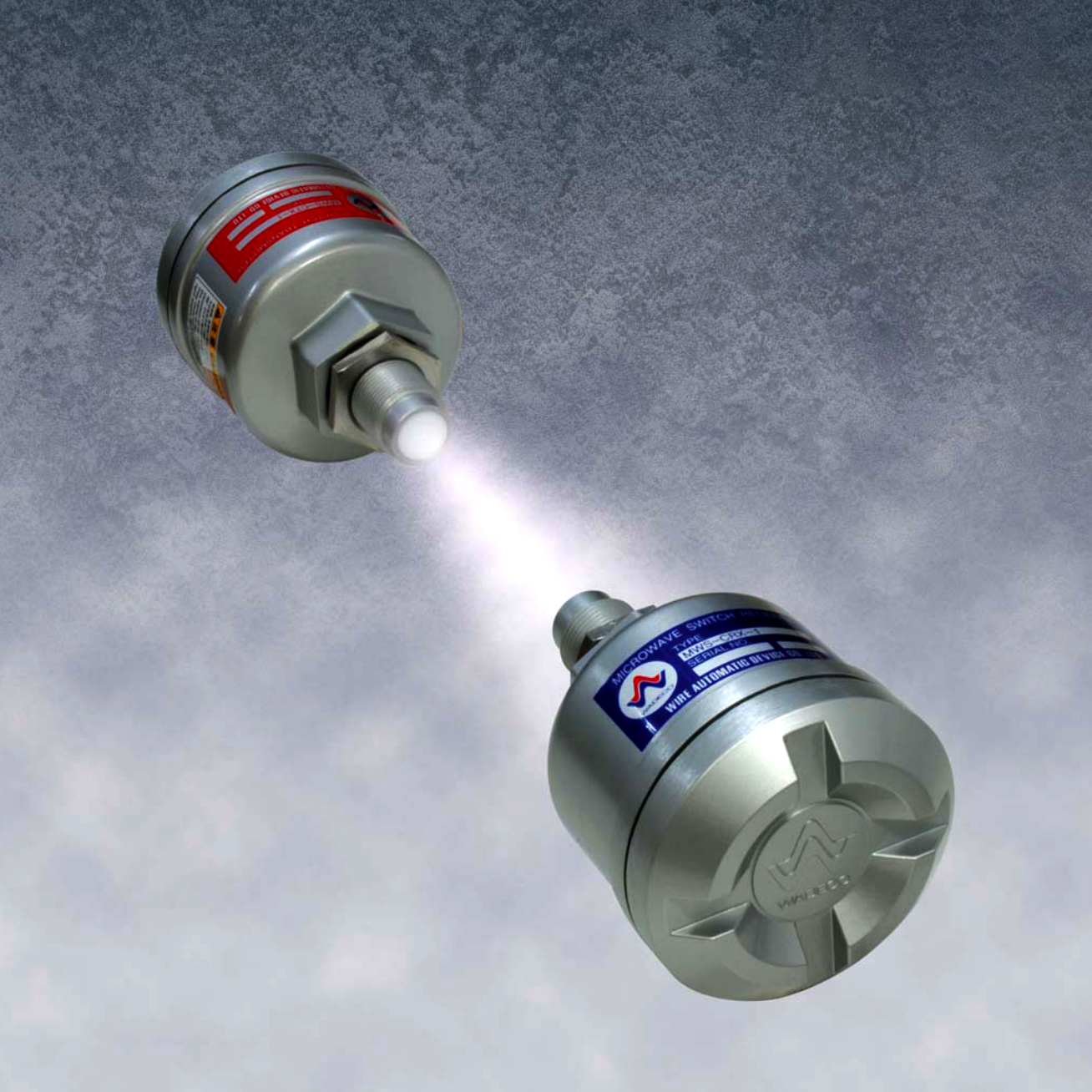

The MWS-CTX/CRX-1 type microwave sensor is a level switch consisting of a transmitter (MWS-CTX-1) and a receiver (MWS-CRX-1) installed face-to-face. Features High penetration Unaffected by adverse conditions Simple beam alignment Sensitivity margin indicators Selectable delay function Selectable hysteresis Easy adjustment Improved antivibration Specifications * The operating distance may vary from sensor to sensor and according to installation.
The transmitter emits a low power microwave beam towards the receiver and an output relay is excited when the beam is obstructed.
The sensor has wide application across all areas of industry where highly reliable, non-contact level detection is required. The sensor is generally used for process control by monitoring presence/absence of product, flow/no flow conditions and point level detection in bins and silos. The sensor may also be used as a proximity switch for detection of vehicles such as dump trucks and rail cars.
Easily penetrates process buildup on antenna, firebrick, refractory etc., thanks to the high penetrability.
The sensor is unaffected by surface contaminants, flames, steam, vapor or airborne particles.
Easy initial beam alignment at installlation, due to the wide beam angle.
The sensitivity margins are indicated on the receiver by LEDs allowing for easy visual adjustment and maintenance of the sensor.
Either on-delay or off-delay function may be selected.
The hysteresis of the output relay can be decreased.
Only one sensitivity rheostat makes adjustment easier.Transmitter Receiver Type MWS-CTX-1 MWS-CRX-1 Power Supply AC100~120V or AC200~240V ±10％, 50/60Hz Power consumption 2VA 2VA Operating distance 20m Frequency and
transmission power24GHz approx. Less than 10mW
