日本RIKEN理研廢料探測器RM-2412/RM-2414
Slug (Scrap) detector

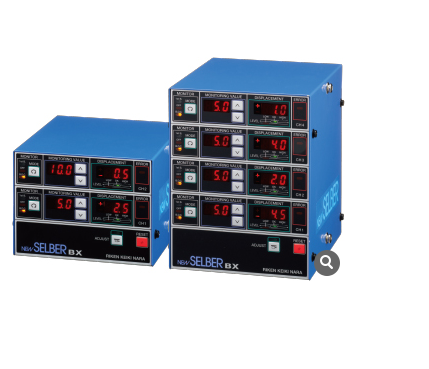

NEW SELBER BXRM-2412 / RM-2414
If you use CAD data, we will accept it by email. ●Ideal for dent countermeasures ●Resolution 0.5μm *The specifications and the contents described in this instruction manual are subject to change without prior notice.
Characteristics
Micro sensor: RS-223H compatible
Large sensor: RS-233H compatibleSpecifications
Name NEW SELBER BX Model RM-2412（2ch） / RM-2414（4ch） Detection resolution 0.5μm (1μm when using RS-233H) Monitoring method Previous value comparison Input 3 points, non-voltage NPN open collector output (Drive current 5mA or more) or contact input Output 2 points, relay contact (C contact) NC-C-NO AC250V 2A Max. (Resistive load) AC OUT 1A Max. Maximum number of rotations that can be monitored 4000spm Operating Temperature Limit 0-50℃ (No Condensation) Ambient atmosphere when used Free from corrosive gas and dust Power supply AC100V-240V 50/60Hz Weight 2ch: Approx. 1.2kg/4ch: Approx. 1.6Kg/Mounting angle: Approx. 0.8kg External Dimensions 120（W）×90（H）×140（D）㎜（RM-2412）
120（W）×154（H）×140（D）㎜（RM-2414）
(Excluding terminal block and other protrusions)
