日本RIKEN理研傳感器測頭RS-841H/RS-843H
Sensors
Sensor SeriesProximity sensor
*All dimension drawings of the series can be downloaded together. If you use CAD data, we will accept it by email. You can download the external dimensions of each product. ■Custom-made sensor cables are also available. ■ Relay cables are also available in various lengths. Due to product improvements, some specifications may change without prior notice.
Characteristics

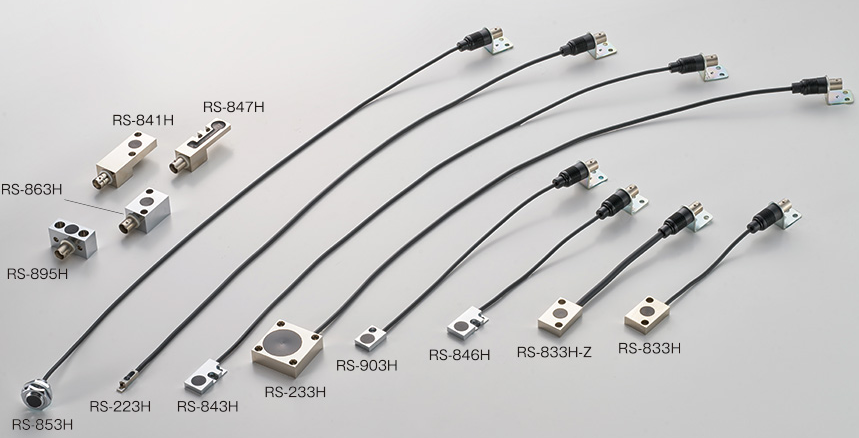

*Select “Right click=Save the object into file” to save the data in a file.Model External Dimensions Model used Features RS?223H RS?223H(145kb) RM-2305／RM-2505
RM-7302／RM-7304
RM-2412／RM-2414Micro/wire length 500 mm RS?233H RS?233H(148kb) Large/wire length 500 mm RS?833H RS?833H(148kb) RM-6302 (Overseas only)
RM-1310
RM-2305／RM-2505
RM-7302／RM-7304
RM-2412／RM-2414Standard type/Line length 100 mm
*Product accessoriesRS?833H?Z RS?833H-Z(104kb) RS-833H Same shape/Cable diameter Φ5.3 RS?841H RS?841H(86kb) RM-2305／RM-2505
RM-7302／RM-7304
RM-2412／RM-2414L type/without cable RS?843H RS?843H(147kb) Thin/wire length 500 mm RS?846H RS?846H(148kb) Thin/wire length 130mm RS?847H RS?847H(86kb) L type/without cable/Thin RS?853H RS?853H(106kb) Round/wire length 500 mm RS?863H RS?863H(85kb) Embedding type RS?895H RS?895H(85kb) Without cable RS?903H RS?903H(104kb) Small and Thin/wire length 200mm Model Features Remarks RS?833C 3m Cable RS?835C 5m Cable Standard relay cable is included with the product. RS?836C 6m Cable RS?837C 7m Cable RS?838C 8m Cable RS?83AC 10m Cable
