Multi-Purpose | Chemical Resistance Tube | For customers who transfer UV inks, UV-based paints which become harden inside the tube or who have trouble in changing ink viscosity.

Sample Request Leaflet Request Specification Request

Fluids

icon_yakuhin chemicals

icon_youzai flux

icon_UVtoryou

icon_UVinc

Applications

For Industrial Ink-Jet Printers (For UV Ink Supplying Pipes)
For Transferring UV-based Paints and Solvents of the Painting Equipment
For Transferring UV-curable Inks
For Transferring Chemicals used in Laboratory Equipment
For Transferring Chemicals used in Semiconductor-Related Devices and Flat-Panel Display (FPD) Manufacturing Devices
For Pipe for Printing Head
For Filling Line of UV Paints and UV-based Adhesives

Functions

Product Standard

Standard Size (mm size)

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20 $^{°}$ C	20 $^{°}$ C	20 $^{°}$ C
	m	mm	MPa	Bar	mm
E-SJ-2 $\times$ 4-BK	20	2 $\times$ 4	0 - 0.6	0 - 6	15
	100
E-SJ-3 $\times$ 5-BK	20	3 $\times$ 5			20
	100
E-SJ-4 $\times$ 6-BK	20	4 $\times$ 6			25
	100
E-SJ-4.3 $\times$ 6.4-BK	20	4.3 $\times$ 6.4			30
	100
E-SJ-5 $\times$ 7-BK	20	5 $\times$ 7	0 - 0.5	0 - 5	40
	100
E-SJ-6 $\times$ 8-BK	20	6 $\times$ 8	0 - 0.4	0 - 4	50
	100
E-SJ-8 $\times$ 10-BK	20	8 $\times$ 10	0 - 0.4	0 - 4	90
	100
E-SJ-8 $\times$ 12-BK	20	8 $\times$ 12	0 - 0.6	0 - 6	50
	100

Standard Size (inch size)

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20 $^{°}$ C	20 $^{°}$ C	20 $^{°}$ C
	m	mm	MPa	Bar	mm
E-SJ-1/8" $\times$ 1/4"-BK	20	3.18 $\times$ 6.35	0 - 0.6	0 - 6	20
	100
E-SJ-3/16" $\times$ 1/4"-BK	20	4.76 $\times$ 6.35	0 - 0.5	0 - 5	45
	100
E-SJ-1/4" $\times$ 3/8"-BK	20	6.35 $\times$ 9.53	0 - 0.6	0 - 6	45
	100

Made-to-Order Size Example

Model Number	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	I.D. $\times$ O.D.	20 $^{°}$ C	20 $^{°}$ C	20 $^{°}$ C
	mm	MPa	Bar	mm
SJ-1 $\times$ 3-BK	1 $\times$ 3	0 - 1.0	0 - 10	10
SJ-1.5 $\times$ 3-BK	1.5 $\times$ 3	0 - 0.6	0 - 6	10
SJ-2.5 $\times$ 4-BK	2.5 $\times$ 4	0 - 0.6	0 - 6	25
SJ-3 $\times$ 4-BK	3 $\times$ 4	0 - 0.6	0 - 6	30
SJ-5 $\times$ 8-BK	5 $\times$ 8	0 - 0.6	0 - 6	30
SJ-7 $\times$ 10-BK	7 $\times$ 10	0 - 0.4	0 - 4	50
SJ-9 $\times$ 12-BK	9 $\times$ 12	0 - 0.5	0 - 5	65
SJ-1/16" $\times$ 1/8"-BK	1.59 $\times$ 3.18	0 - 0.6	0 - 6	10
SJ-3/32" $\times$ 5/32"-BK	2.38 $\times$ 3.97	0 - 0.3	0 - 3	25
SJ-3/16" $\times$ 5/16"-BK	4.76 $\times$ 7.94	0 - 0.5	0 - 5	30
SJ-3/8" $\times$ 1/2"-BK	9.53 $\times$ 12.7	0 - 0.4	0 - 4	70

Temperature Range : -20 - 80
$^{°}$
C (-4
$^{°}$
F - 176
$^{°}$
F)
Color : Black

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please refer to the value of "Amount of Deflection" in the section of Technical Information or request the sample.

*If you are interested in Made-to-Order size, please fill out the following form. (We can also produce a special size that is not listed on the table above. Please note that MOQ applies for made-to-order size.)

上一篇：日本HAKKO八興軟管E-SJ-1/8X1/4-BK 下一篇：日本HAKKO EIGHTRON八興軟管E-SJ-9X12/E-SJ-3/8"X1/2"

返回列表

Why have I been blocked?

What can I do to resolve this?

亚洲精品免费在线视频,在线你懂的网站,自拍偷拍欧美图片,亚洲成av人在线视,亚洲国产成人在线观看,在线视频第一页

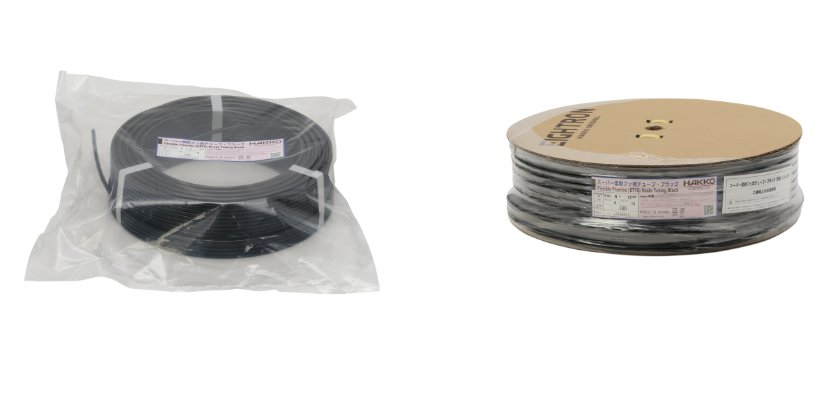

Flexible Fluorine (ETFE) Resin Tubing Black [Model Number: E-SJ-BK]
