日本Ihara井原接頭SJS608-508/SJS610-410
日本Ihara井原接頭SJS608-508/SJS610-410

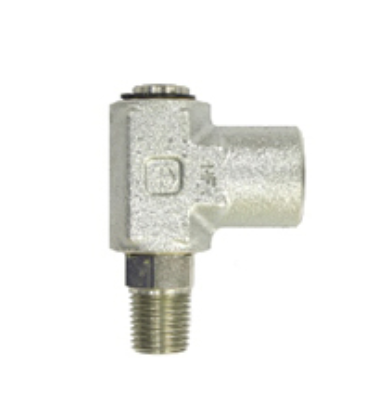

Swivel Joint SJS Type (SJS502-402)
Part Number: SJS502-402
Swivel joint for general hydraulic pressure. Effective anti-torsion measure for hydraulic hoses that offers improved durability.
[Features]
· Used for pressure piping, this is a joint that allows slow rotation or oscillation (reciprocating rotary motion) and is used mainly for connecting a fixed pipe to a high-pressure hose. It is useful for preventing unreasonable hose attachment and twisting.
· SJS type.
· A product with a simple structure intended for general use.
· SJH type.
· The rotor peripheral surface, which is a rotating and sliding part, has been surface hardened in order to withstand harsh use, and a slipper seal with a very low degree of wear is used to suppress the drag of the O-ring and thus prevent wear.
· SJM type.
A product that is a straight swivel joint that rotates easily due to the placement of a steel ball in a sliding part.
Configured Specifications
Download
| Types | Swivel Joints | Compatible Fluid | Oil |
|---|---|---|---|
| Maximum Operating Temperature(°C) | 95 | Connection Type | [Screw ? Screw] Elbow |
| Type of Connection Thread Supply Side (Single Unit, Swivel) | Rc | Type of Connection Thread Exhaust Side (Single Unit, Swivel) | R |
| Nominal Connection Thread Supply Side (Single Unit, Swivel) | 1/4 | Nominal Connection Thread Exhaust Side (Single Unit, Swivel) | [1/4B] 1/4 |
| Thread ridge Specifications | - | - | - |
