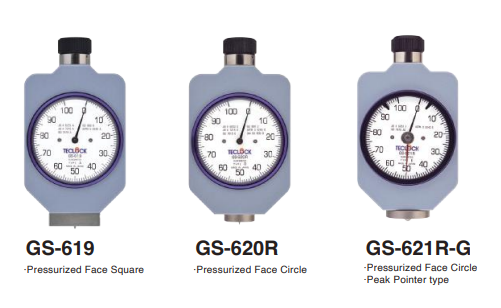

日本TECLOCK得樂硬度計GS-619/GS-619G/GS-619R
日本TECLOCK得樂硬度計GS-619/GS-619G/GS-619R

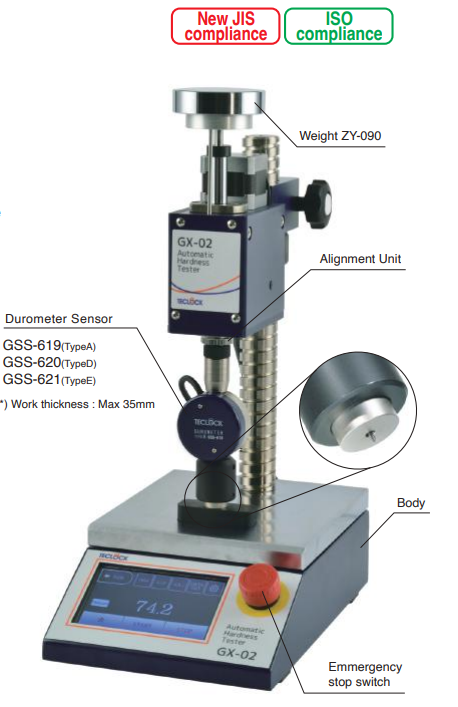

Automatic hardness tester [GX-02 series] can perform the measurementwith the operating speed, the measuring weight and the pressing-surfacedimensions which are specified in JIS K 6253 “Determination of hardness- Vulcanized rubber and Thermoplastic rubber”.GX-02 seriesAutomatic Hardness TesterMeasuring modes : 3 typesAlignment Unitfor Durometer Stand·Tolerance judging feature·Data output format : RS-232CAs it can move front / back and left /right it is thenew function which has materialized highadhesion between pressurized face of durometerand face to be measured of test piece. It ismounted to GX-610Ⅱ, GS-612, GS-615 and alldurometers including GX-02 type.FeaturesFeatures One-touch Measurement by Touch panel LCD.Display and Data output Peak hold, Timer hold,Meadian and Average.High adhesion between pressurized face and test pieceby Alignment Unit.Measurement of TypeA, TypeD or TypeE by exchangethe sensor.Calibration certificate can be issued.

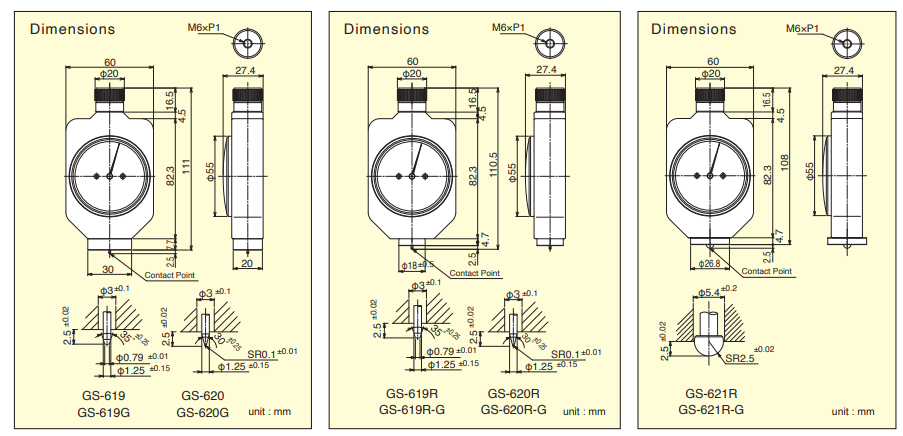

StandardsMinimum indicationSystem feauturesOutside interfacePowerDimensionsWeightSensor unitISO 7619 / JIS K 6253 compliance0.1Peak-holding function, Timer-holding function (Timervalue 0.5, 1 to 99sec), Tolerance judging function,Mean value outputting function (n=1 to 30), Data output(PC printer), Outer functions control outputRS-232CAC100~240V(ACAdapter)170(W)×160(L)×470(H)mm11kg(Including weight 1kg)Model : GSS-619 (Type A) GSS-620 (Type D)GSS-621 (Type E)Pressing-surface diameter : φ18mm(ESS-621, type E is 127mm)Code length : 2mDimensions : 50(W)×35(L)×124(H)mmWeight : 320gS
