日本Kashiyama樫山工業風冷式干泵NeoDry300E
發布時間：2024-08-15
日本Kashiyama樫山工業風冷式干泵NeoDry300E
日本Kashiyama樫山工業風冷式干泵NeoDry300E

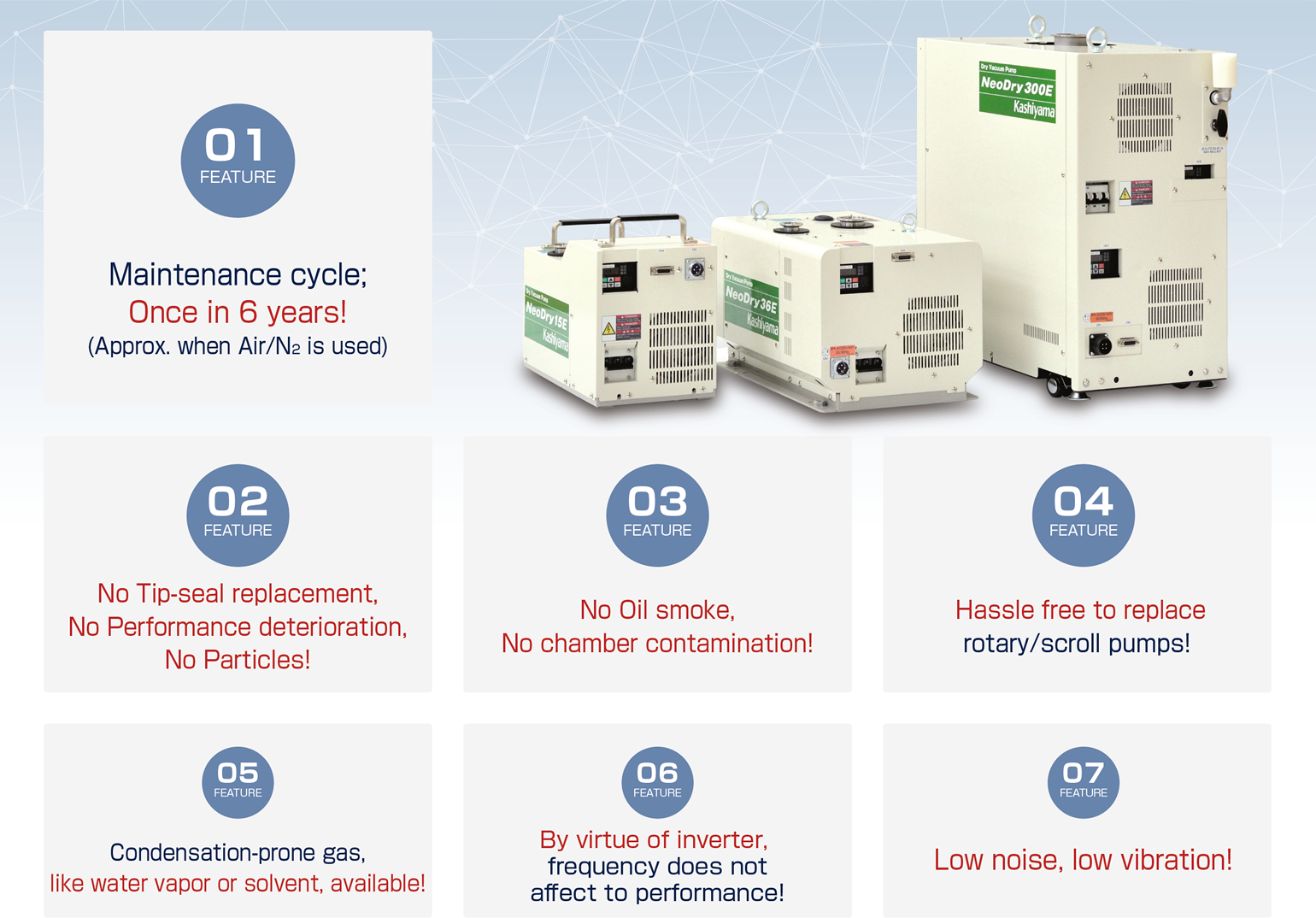

Handy & Air Cooled Dry PumpNeoDry E Series
Mechanism
Major Products
| Spec. / Products | NeoDry7E | NeoDry15E | NeoDry30E | NeoDry36E | NeoDry60E | NeoDry100E | NeoDry300E |
| Max. pumping speed [L/min] | 110 | 250 | 500 | 600 | 1,000 | 1,670 | 5,000 |
| Ultimate pressure [Pa] (Without gas ballast) | 5.0 | 1.0 | 2.0 | 0.3 | |||
| Supply voltage (50/60Hz) *1 | Single Phase, AC100～120V Single Phase, AC200～240V | Single Phase, AC100～120V Single Phase, AC200～240V 3Phase, AC200～240V | Single Phase, AC200～240V 3Phase, AC200～240V | ||||
| Gas ballast mechanism | Optional (N2 available) | Standard accessory | |||||
| Max allowable moisture[g/h] (With gas ballast) | 120 | 250 | 350 | 600 | |||
| Noise [dB(A)] (Inlet closed) | ≦56 | ≦58 | ≦60 | ≦55 | ≦72 | ||
| Vibration [μmp-p] (Inlet closed) | ≦8 | ≦15 | |||||
| Mass [kg] | 19 | 23 | 25 | 54 | 56 | 90 | 125 |
| Inlet size | NW25 | NW40 | NW50 | ||||
| Outlet size | NW25 | ||||||
*1) Contact us for other voltage options. *2) Package size.
* Contact us about international standard compliance. Spec. & name of products are subject to change without prior notice.

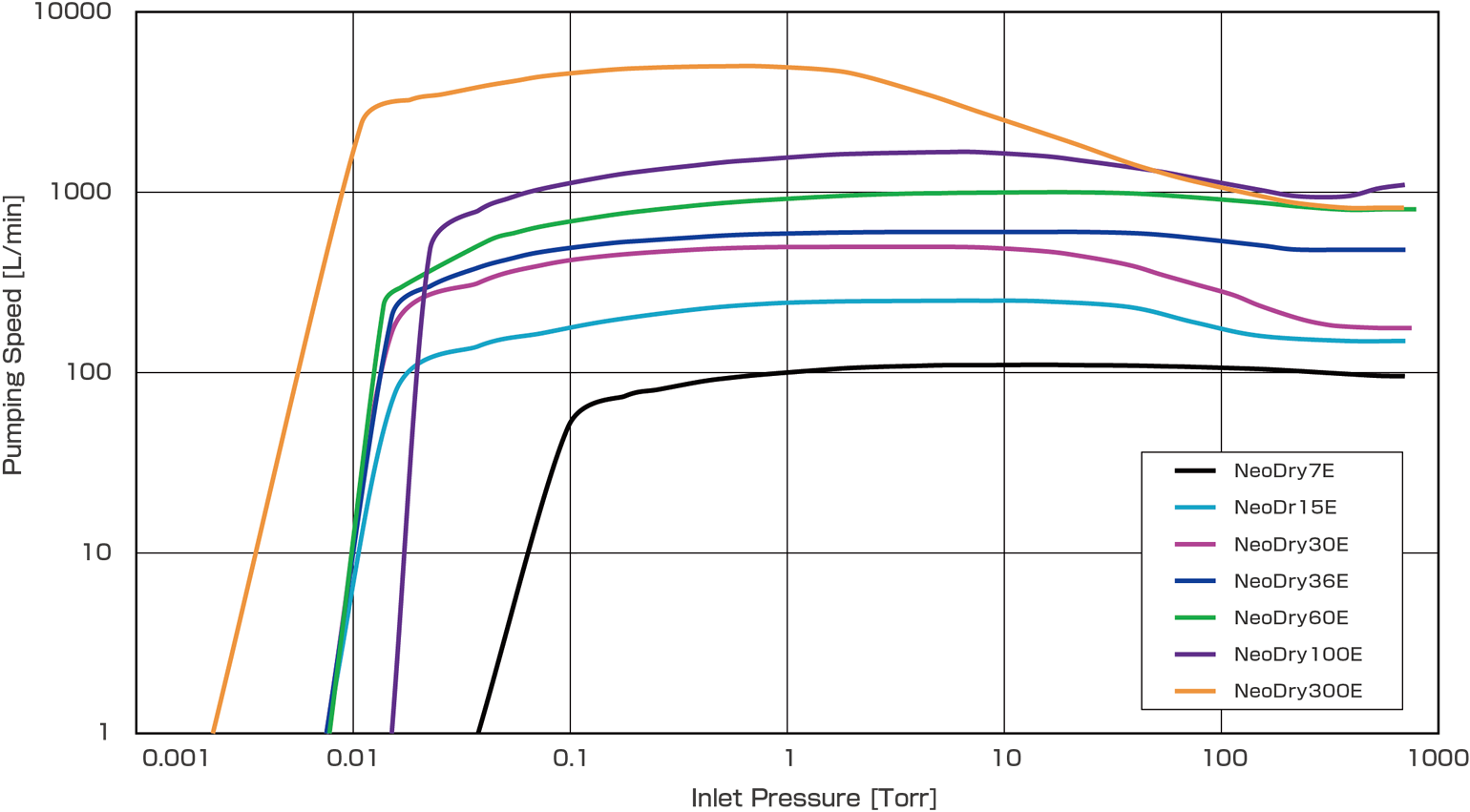

S-P Curve
* S-P curves vary by combination.
