日本Kashiyama樫山工業真空泵MU100P/H MU180P/H
發布時間：2024-08-15
日本Kashiyama樫山工業真空泵MU100P/H MU180P/H
MU-P/H Series

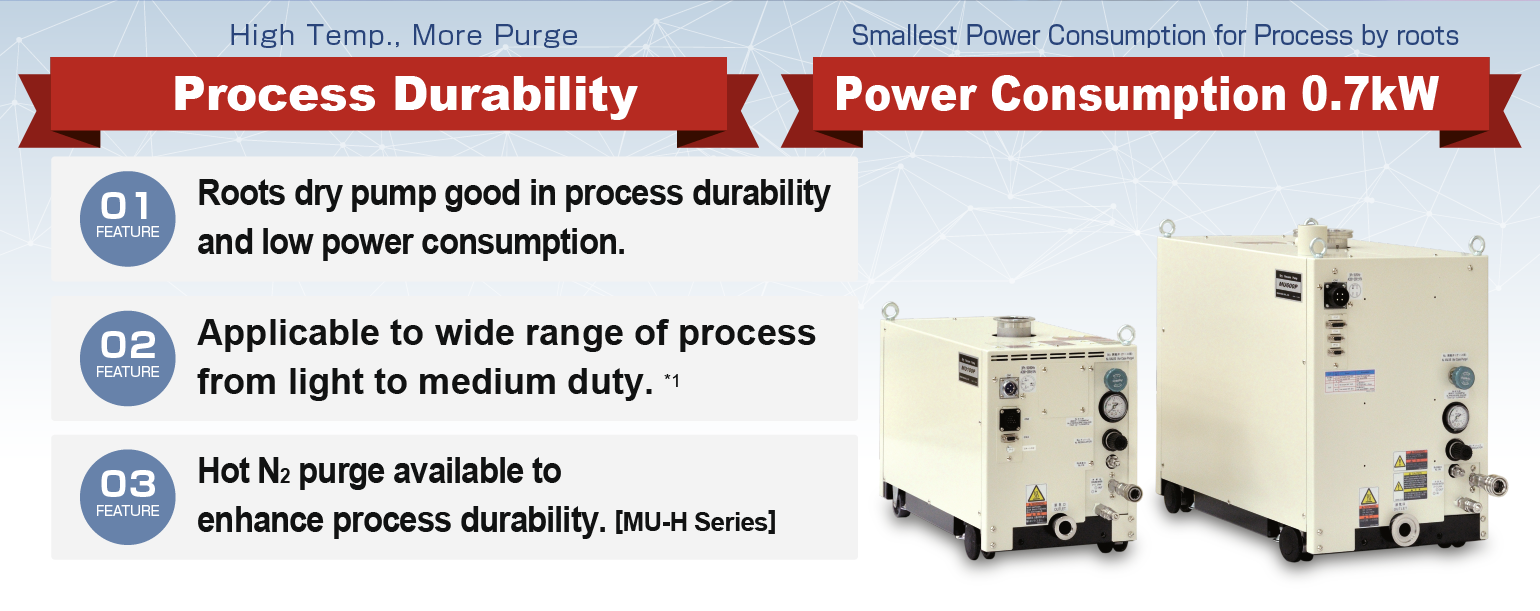

![High Temp., More Purge. Process Durability. Smallest Power Consumption for Process by roots. Power Consumption 0.7kW. Roots dry pump good in process durability and low power consumption. Applicable to wide range of process from light to medium duty. Hot N2 purge available to enhance process durability. [MU-H Series]](/public/Home/images/upload/image/20240815/1723702117722501.png)
Major Products
| Spec. / Products | MU100P/H | MU180P/H | MU300P/H | MU600P/H | MU1218P/H | MU20N18P/H | MU30N18P/H |
| Max. pumping speed [L/min] *2 | 1,660 | 3,000 | 5,000 | 10,000 | 20,000 | 30,000 | 50,000 |
| Ultimate pressure [Pa] *2 | 3.0 | 5.0 | 0.5 | ||||
| Supply voltage (50/60Hz) | 3Phase AC200～220V *3 | ||||||
| Power consumption [kW] *4 | 0.7 | 1.0 | 0.9 | 0.95 | 1.4 | 1.5 | 1.6 |
| Dimensions [mm] L×W×H *5 | 630×350×360 | 715×360×408 | 630×350×520 | 870×380×751 | 1000×450×950 | ||
| Mass [kg] | 70 | 130 | 110 | 130 | 280 | 410 | 410 |
*1) Contact us about application beforehand. *2) Without N2 purge. *3) Contact us for other voltage options.
*4) Approx. value at ultimate pressure, +0.2kW with Hot N2 purge. *5) Package size.
* Contact us about international standard compliance. Spec. & name of products are subject to change without prior notice.
* Contact us about large capacity pumps.
S-P Curve
