日本Kashiyama樫山工業真空泵SDL12E50/SDL20E50
發布時間：2024-08-15
日本Kashiyama樫山工業真空泵SDL12E50/SDL20E50
日本Kashiyama樫山工業真空泵SDL12E50/SDL20E50

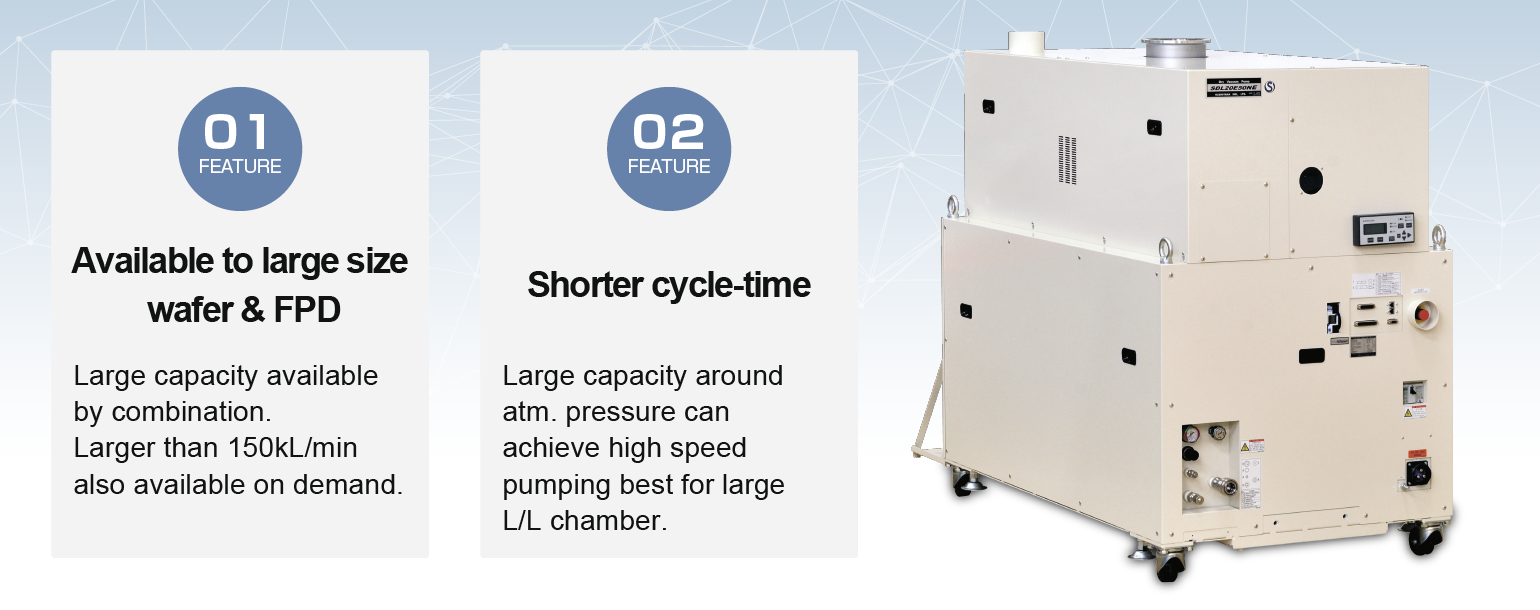

SDL Series
Pumps for solvent evacuation are also lined-up
Major Products
| Spec. / Products | SDL12E50 | SDL20E50 | SDL36E60 | SDL3600 |
| Max. pumping speed [L/min] *1 | 25,000 | 40,000 | 60,000 | 60,000 |
| Back pump max. pumping speed [L/min] *1 | 8,000 | 8,000 | 10,000 | 12,500 |
| Ultimate pressure [Pa] *1 | 0.8 | |||
| Supply voltage (50/60Hz) | 3Ph AC200～220V,?380～440V | |||
| Dimensions [mm] L×W×H | 1000×520×1050 | 1370×850×1295 | 1370×600×1295 | |
| Mass [kg] | 645 | 800 | 920 | 950 |
*1) Without N2 purge.
* Contact us about international standard compliance. Spec. & name of products are subject to change without prior notice.
* Other pump models may be considered depending on the configuration. Please contact our sales representative for details.

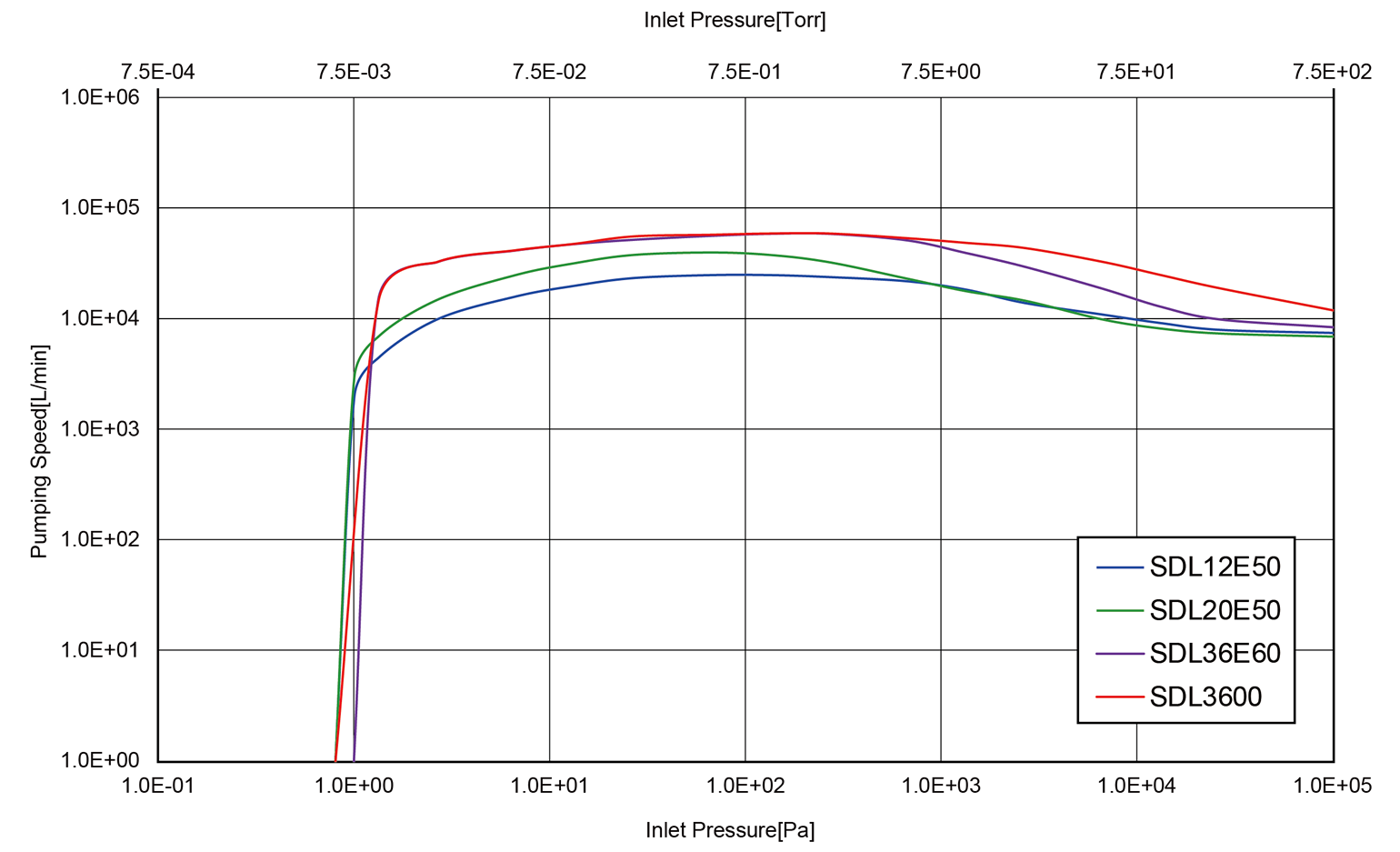

S-P Curve
* S-P curves vary by combination.
