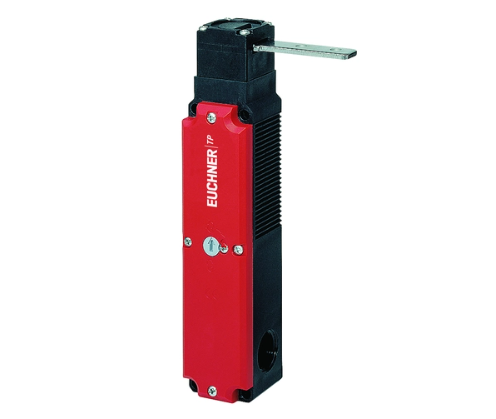

德國EUCHNER安士能機電式安全開關TP4-537A024M
發布時間：2024-08-14
德國EUCHNER安士能機電式安全開關TP4-537A024M
德國EUCHNER安士能機電式安全開關TP4-537A024M
TP3-4141A024M (ORDER NO. 084270)
Safety switch TP with door monitoring contact
Auxiliary release on the front
With door monitoring contact
Increased horizontal overtravel
Approach
Horizontal and vertical
Can be adjusted in 90° steps
Increased overtravel for horizontal approach direction
Solenoid operating voltage
AC/DC 24 V +10%, -15%
Guard locking type
TP3 | Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid. |
Switching element
4141 | Slow-action switching contact 2 NC |
+ 2 NC Auxiliary release
This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.
