日本SMC數字式流量開關PF2A703H-10-29/PF3A703H-10-DS
發布時間：2024-08-13

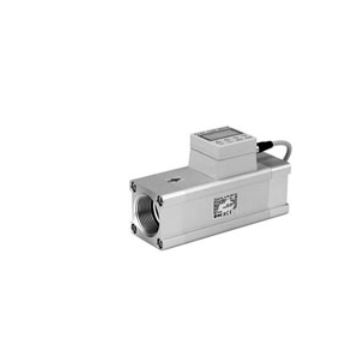

日本SMC數字式流量開關PF2A703H-10-29/PF3A703H-10-DS
Specifications: PF2A Series For Air Digital Flow Switch High Flow Rate Type Integrated Display Type
●Integrated type and separate monitor type are available
●Switch output, accumulated pulse output, analog output
●Capable of switching back and forth between cumulative and instantaneous flow
●IP65
●4-channel Flow Monitor
4 independent flow rate ranges can be monitored by a single controller
| Field | Value | Value Details |
|---|---|---|
| Flow Rate Range | 03 | 150 to 3000 L/min |
| Thread Type | - | Rc |
| Port Size | 10 | 1 |
| Output Specification | 29 | NPN Open Collector 1 Output + Analog Output (4 to 20 Ma) |
| Lead Wire | - | Lead Wire With M12 Connector (3 m) |
| Remote Sensor Unit | M | Fixed SI Unit |
| Made To Order | - | Standard |
