日本無機Nipponmuki超高溫絕緣布BCM-430/650/665/665AD
Super high temperature insulation
Siliglass
Siligalss is high silicate heat resistant fiberglass consisted of SiO2 by 96% or more and can be used for long hours under high temperature of 1,000°C or higher. It is excellent in thermal durability, chemical stability and electrical insulation properties.
Characteristics
Asbestos Free
Fireproof
Resists Thermal Shock
Resists Chemicals
Electrical Resistivity
Minimal Shrinkage
Resists Molten Steel
Non-Hazardous
Cost Effective
Good Workability
Applications
High temperature thermal insulation and absorption material
Welding & Burning Protection Drop Cloth, Welding Curtains, Furnace Curtain, Heat Treat & Stress Relief InsulationHigh temperature filter media
Filter media for hot gases and chemicals.High temperature structural materials
Rocket nose cones, etc.Wicks of oil heater
Catalytic carrier for oxidation-reduction reaction
Catalytic carrier of deodorization equipment. Treating material for organic solution gas.Others
Electric cable insulator for hair driers. High temperature buffers and seals.

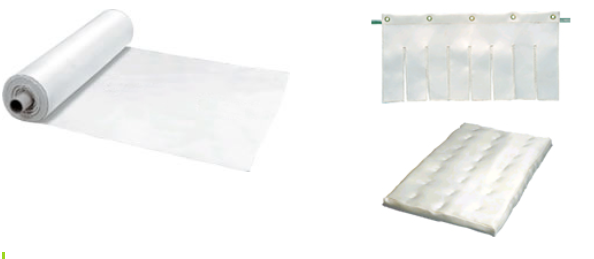

Cloth
![[photo]Cloth](https://www.nipponmuki.co.jp/dcms_html/e/products/application/img/heat01.jpg)
![[photo]Cloth](https://www.nipponmuki.co.jp/dcms_html/e/products/application/img/heat02.jpg)
![[photo]Cloth](https://www.nipponmuki.co.jp/dcms_html/e/products/application/img/heat03.jpg)
Standard specification
| Product Code | Thickness (mm) | Width (mm) | Length (m) | Weight (g/m2) | Product Tensile Strength (N/25mm) | Tensile Strength After Heating (N/25mm) | Heat Shrinkage (%) | Weave | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Warp | Weft | Warp | Weft | |||||||
| BCM-430 | 0.40 | 525 | 100 | 270 | >78 | >78 | >29 | >29 | <5.0 | Mock Lemo |
| BCA-650 | 0.60 | 1,000 | 50 | 460 | >196 | >127 | >137 | >88 | <7.0 | Twill |
| BCS-665 | 0.62 | 1,000 | 87 | 630 | >294 | >137 | >196 | >98 | <4.5 | Satin |
| BCS-665AD | 0.65 | 1,000 | 50 | 570 | >490 | >294 | >196 | >98 | <7.0 | Satin |
| BCS-665U | 0.60 | 1,000 | 50 | 570 | >343 | >196 | >196 | >98 | <15.0 | Satin |
| BCS-12 | 1.20 | 1,000 | 50 | 1,190 | >392 | >245 | >343 | >196 | <7.0 | Satin |
| BCS-12U | 1.20 | 1,000 | 50 | 1,070 | >735 | >490 | >343 | >196 | <15.0 | Satin |
| BCS-12AD | 1.25 | 1,000 | 500 | 1,190 | >882 | >637 | >343 | >196 | <7.0 | Satin |
Heat shrinkage : Percentage of length reduction with 1100°C applied for 30 minutes. (BCS-665 is with 1200°C applied for 30 minutes)
Tensile strength after heating : Retension of tensile strength after 30 minutes heating at 1100°C. (BCS-665 is after 30 minutes heating at 1200°C)
BCS-665U,BCS-665AD,BCS-12U and BCS-12 are JIS A 1323(flame resisting examination)passing goods.
