日本無機Nipponmuki風機過濾裝置PFT2-N-0202T-11L/PFT2-N-0202T-11P
發布時間：2024-08-09

日本無機Nipponmuki風機過濾裝置PFT2-N-0202T-11L/PFT2-N-0202T-11P

Fan filter unit (thin type) PFT2

Thin fan filter unit

[photo]Fan filter unit (thin type) PFT2

  • Type

  • PFT2

It is thin and light weighted multi purpose fan filter unit. It can be easily installed and obtained limited purified area. It is suitable for narrow space.

Standard specification (example)

Remarks

  1. Air volume in parenthesis ( ) is for the model with Pre-filter.

  2. Air volume for the use with DC is the same as AC with 50Hz.

  3. T(thin type) is not available for AC200V(3 phase).

  4. S(type with switch) is available only for AC100V(single phase), AC200V(single phase), DC12V and 24V.

  5. Air volume controller is available only for AC100V(single phase), AC200V(single phase) and DC48V.

Item250x250 module (thin type)

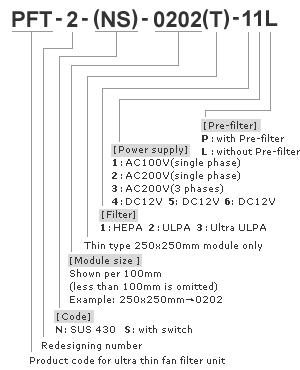

TypePFT2-N-0202T-1**PFT2-N-0202T-2**PFT2-N-0202T-3**
External Size
(mm)		250 x 250 x 130
CompositionCasingSUS430
FanAxial fan
FilterHEPAULPAU-ULPA
Air volume (m3/min)0.9/1.1(0.8/1.0)0.8/1.0(0.7/0.9)0.7/0.9(0.7/0.8)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 15/13, DC : 10
Weight (kg)Approx. 3.5
Item250x250 module
TypePFT2-N-0202-1**PFT2-N-0202-2**PFT2-N-0202-3**
External Size
(mm)		250 x 250 x 145
CompositionCasingSUS430
FanAxial fan
FilterHEPAULPAU-ULPA
Air volume (m3/min)1.7/2.2(1.6/2.0)1.6/2.1(1.5/1.9)1.5/2.0(1.4/1.8)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 34/32, DC : 19
Weight (kg)Approx. 4.0
Item400x400 module
TypePFT2-N-0404-1**PFT2-N-0404-2**PFT2-N-0404-3**
External Size
(mm)		400 x 400 x 145
CompositionCasingSUS430
FanAxial fan 1 unit
FilterHEPAULPAU-ULPA
Air volume (m3/min)3.5/4.5(3.0/4.1)3.1/4.2(2.5/3.6)2.6/3.7(2.4/3.2)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 34/32, DC : 19
Weight (kg)Approx. 6.0
Item500x500 module
TypePFT2-N-0505-1**PFT2-N-0505-2**PFT2-N-0505-3**
External Size
(mm)		500 x 500 x 145
CompositionCasingSUS430
FanAxial fan 2 unit
FilterHEPAULPAU-ULPA
Air volume (m3/min)6.0/8.0(5.0/7.2)5.1/7.4(4.7/6.4)4.7/6.4(4.5/5.7)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 68/64, DC : 38
Weight (kg)Approx. 9.0
Item610x610 module
TypePFT2-N-0606-1**PFT2-N-0606-2**PFT2-N-0606-3**
External Size
(mm)		610 x 610 x 145
CompositionCasingSUS430
FanAxial fan 3 unit
FilterHEPAULPAU-ULPA
Air volume (m3/min)10.0/12.8(7.8/11.2)7.6/9.9(7.3/9.8)7.3/9.8(6.7/8.7)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 102/96, DC : 57
Weight (kg)Approx. 12.0
Item610x760 module
TypePFT2-N-0607-1**PFT2-N-0607-2**PFT2-N-0607-3**
External Size
(mm)		610 x 760 x 145
CompositionCasingSUS430
FanAxial fan 3 unit
FilterHEPAULPAU-ULPA
Air volume (m3/min)10.7/13.7(8.6/12.3)9.6/12.8(7.9/11.4)7.9/11.4(7.2/9.6)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 102/96, DC : 57
Weight (kg)Approx. 14.0
Item610x915 module
TypePFT2-N-0609-1**PFT2-N-0609-2**PFT2-N-0609-3**
External Size
(mm)		610 x 915 x 145
CompositionCasingSUS430
FanAxial fan 3 unit
FilterHEPAULPAU-ULPA
Air volume (m3/min)11.6/14.5(10.4/13.0)10.6/13.6(9.0/12.4)9.9/12.8(7.8/11.5)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 102/96, DC:57
Weight (kg)Approx. 15.5
Item610x1220 module
TypePFT2-N-0612-1**PFT2-N-0612-2**PFT2-N-0612-3**
External Size
(mm)		610 x 1220 x 145
CompositionCasingSUS430
FanAxial fan 4 unit
FilterHEPAULPAU-ULPA
Air volume (m3/min)15.5/20.0(13.7/17.6)14.3/18.2(12.0/16.4)13.3/17.1(10.7/15.3)
Collection efficiency (%)99.99(0.3μm)99.999(0.1-0.15μm)99.9999(0.1-0.15μm)
Power supplyAvailable with AC200V(single phase), AC200V(3 phases), DC12, 24 and 48V
Power consumption(W)AC : 136/128, DC:76
Weight (kg)Approx. 20.0

Example pictures

  • [photo]Case with Fan filter unit (thin type) PFT2

  • [photo]Case with Fan filter unit (thin type) PFT2

  • [photo]Case with Fan filter unit (thin type) PFT2
