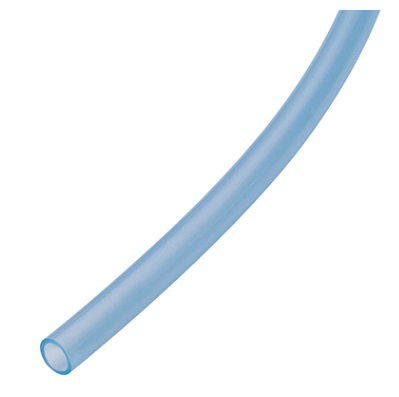

日本PISCO SFT氟素樹脂氣管SFT0860
日本PISCO SFT氟素樹脂氣管SFT0860
Tube
SFT0860-100-CB
Superior chemical and weather resistance makes Fluororesin Tube best suited for chemical, food-processing, medical care and semiconductor applications.
Available in 5 colors and 12 sizes. (Inch sizes available)
Tube color
Clear blue
Weight
5000.0g
Shipping unit
1roll
Bending radius
SFT0860-100-CB
Port sizeSpecificationsAdvantagesDetailed Safety InstructionsFrequently Asked Questions (FAQ)Products with Different OptionsProducts with Different SizesRelated Products
Port size
mm size
| O.D. x I.D.(φmm) | 8x6 |
|---|
Specifications
| Fluid medium | Air, Water (Conditional *1), Others such as chemicals (Conditional *1) |
|---|---|
| Max. operating pressure (65%RH at 20o) | 1.0MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | -65～260oC (No freezing) |
Warning
*1. Adhere to the following conditions when the fluid medium is water. or any liquids
Surge pressure must be controlled lower than max. operating pressure when using water or any liquids as a fluid medium.
Tap water in Japan, which is soft water (low mineral content) can be used. Carry out the evaluation under an actual operating condition for using other kind of water.
Be sure to place Insert Ring (WR) into the tubing end when the the tubing is inserted into Push-in Fitting with water or any liquids oil as a fulid medium.
As for chemicals, mixed gas, etc., they may vary depending on the conditions of use, so please check the compatibility of our specifications before use.
*2. The value of max. operating pressure is measured at 20oC at 65%RH. When the tubing is used in different conditions, consider a safety ratio of the pressure with an enough margin, referring to Burst Pressure Curve.
Advantages
Excellent in chemical and weather resistance. Good for use in chemical, food, medical and semi-conductor industries
Extruded from fluoropolymer (PFA) which is excellent in chemical resitance
Superior interior surface smoothness, transparency and purity
Extensive service temperature range
