日本UNIPULSE尤尼帕斯傳感器UNLS-5KN-FG
UNLS
Compact compression type load cell
| Product outline | Specifications | Download |
Product outline

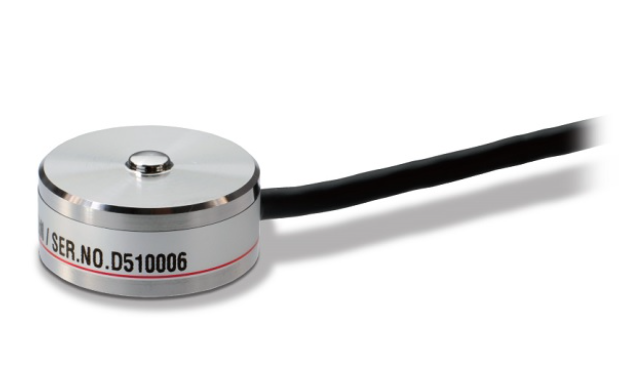

Compact compression type load cell with a diameter of 21 mm and a height of 10 mm
● Capacity 100 N/ 200 N/ 500 N/ 1 kN/ 2 kN/ 5 kN
● Construction material: Stainless steel
● Compact compression type load cell with a diameter of 21 mm and a height of 10 mm
● UNLS-FG: W/ plate for screw fastening
Specifications
| Model | UNLS-100N, UNLS-200N, UNLS-500N, UNLS-1KN, UNLS-2KN, UNLS-5KN, | UNLS-100N-FG, UNLS-200N-FG, UNLS-500N-FG, UNLS-1KN-FG, UNLS-2KN-FG, UNLS-5KN-FG |
|---|---|---|
| Rated capacity | 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN | |
| Rated output | Approx. 1 mV/V | |
| Safe overload | 150% R.C. | |
| Zero balance | 10% or less R.O. | |
| Non-linearity | 0.5% or less R.O. | 1.0% or less R.O. |
| Hysteresis | 0.3% or less R.O. | 0.5% or less R.O. |
| Repeatability | 1.0% or less R.O. | 1.0% or less R.O. |
| Compensated temperature range | 0 to +50℃ | |
| Safe temperature range | 0 to +60℃ | |
| Temperature effect on zero | 0.5% R.O./10℃ or below | |
| Temperature effect on span | 0.5% R.O./10℃ or below | |
| Input resistance | Approx. 350 Ω | |
| Output resistance | Approx. 350 Ω | |
| Recommended excitation voltage | 2.5 V | |
| Maximum excitation voltage | 5 V | |
| Insulation resistance (DC50V) | 1000 MΩ or more | |
| Cable | φ3 4-conductor shield cable 2 m Cable end: 5 wires | |
| Cable color code | ＋EXC: Red ＋SIG: Green －EXC: White －SIG: Black SHIELD: Yellow | |
| Load cell material | Stainless steel | |
| Deflection at rated | 100N, 100N-FG：0.015 mm 200N, 200N-FG：0.015 mm 500N, 500N-FG：0.020 mm 1kN, 1kN-FG: 0.020 mm 2kN, 2kN-FG: 0.025 mm 5kN, 5kN-FG: 0.040 mm | |
| Natural frequency | 100N, 100N-FG：35 kHz 200N, 200N-FG：47 kHz 500N, 500N-FG：60 kHz 1kN, 1kN-FG: 85 kHz 2kN, 2kN-FG: 98 kHz 5kN, 5kN-FG: 102 kHz | |
| Weight | 100N: 20 g, 100N-FG: 35 g 200N: 20 g, 200N-FG: 35 g 500N: 20 g, 500N-FG: 35 g 1kN: 20 g, 1kN-FG: 35 g 2kN: 20 g, 2kN-FG: 35 g 5kN: 20 g, 5kN-FG: 35 g | |
| RoHS directives | 2011/65/EU (EU)2015/863 | |

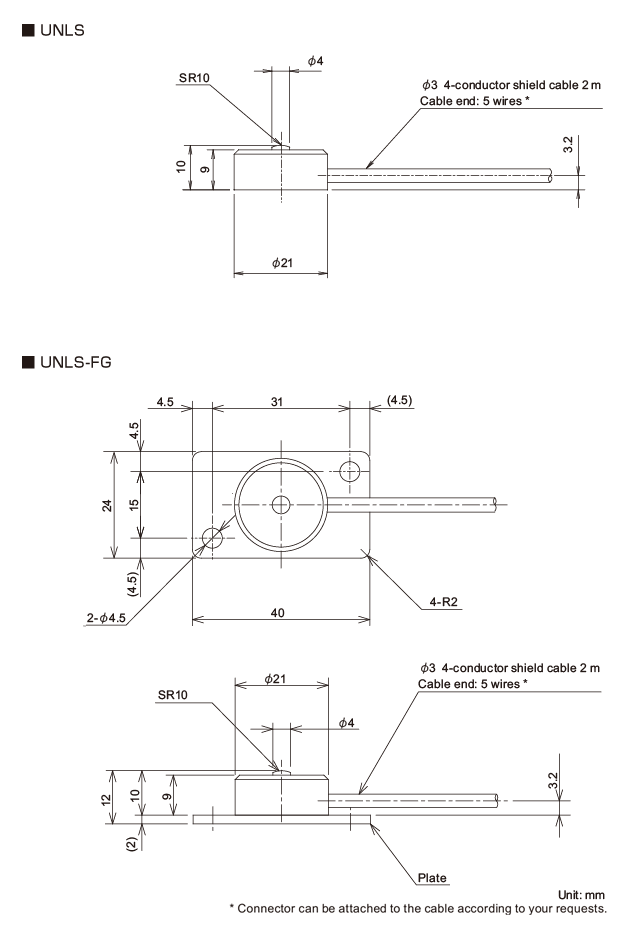

External dimension
