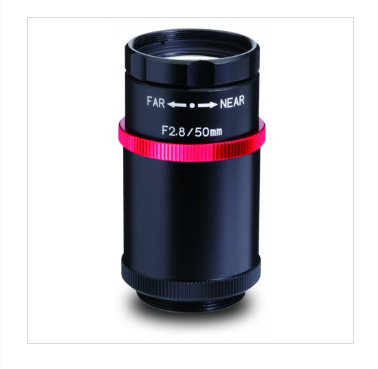

日本Kowa-opt抗振抗沖擊鏡頭LM50JCM-V
LM50JCM-V
LM50JCM-V
New
2/3" Megapixel Anti-Shock & Vibration Lens
Kowa's new JCM-V series is made for use in high vibration and high shock environments. With a design based on Kowa's standard 2/3" JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.
DATA SHEET
| Lens Type | Fixed Focal Length Lens |
| Image Size | 2/3" (8.8 x 6.6 x 11mm) |
| Focal Length | 50mm |
| Iris Range (F-Stop) | F1.4 / F4 / F8 / F16 |
| Minimum Focus Distance | 0.2m |
| Mount | C-Mount |
| Angle of View 2/3" (Hor. x Ver. x Dia.) | 9.6 x 7.2 x 11.9° |
| Angle of View 1/2" (Hor. x Ver. x Dia.) | 7.0 x 5.2 x 8.7° |
| Angle of View 1/3" (Hor. x Ver. x Dia.) | 5.2 x 3.9 x 6.5° |
| Field of View at M.O.D. 2/3" (Hor. x Ver. x Dia.) | 29.3 x 21.9 x 36.6mm |
| Field of View at M.O.D. 1/2" (Hor. x Ver. x Dia.) | 21.3 x 16.0 x 26.6mm |
| Field of View at M.O.D. 1/3" (Hor. x Ver. x Dia.) | 16.0 x 12.0 x 20.0mm |
| TV Distortion | -0.03% |
| Flange Back | 17.526mm in air |
| Back Focus | 35.5mm in air |
| Filter Thread Size | M27 x P0.5 |
| Front / Rear Effective Diameter | Front Φ21.7mm / Rear Φ14.6mm |
| Exit Pupil Location | -63.7mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -40°C ~ +60°C |
| Resolution: Center / Corner | Center 120lp/mm / Corner 100lp/mm |
? For megapixel applications requiring a sensor size of 2/3" (Φ11mm) or smaller.MORE INFO
? Unique mechanical design to guard against strong vibration & shock.
? Two way reversible nut is utilized to tightly lock the focus adjustment ring in place.
? All internal glass elements are glued to the inside housing to improve durability.
? Ability to choose from four interchangeable iris plates. This provides the flexibility of having an adjustable F-stop while maintaining the advantage of a fixed iris with no moving parts.
