日本Miyoshi三好萬向接頭HSD-16-TT
發布時間：2024-07-25
日本Miyoshi三好萬向接頭HSD-16-TT

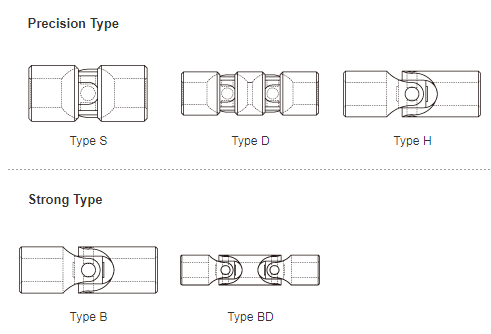

Anti-corrosive Type HSD, BSD
Stainless Steel SUS304
Dry lubrication treatment is carried out to improve the anti-wear characteristics. ( over HSD-16)
A hole for a spring-pin and a taper-pin attached should be machined together with a shaft at a location of ?/2.
Designate new JIS or old JIS for key, when the type of shaft-hole shape is B or T.
A spring-pin is not attached for a joint with a key way.
(1) in water or in water and air alternately (2) in acidic liquid (3) in alkaline liquid
(4) for anti-corrosive and heat-resistant use
■Type HSD?BSD Dimension Table
Attachment： spring-pin 2 pieces(SUS420J2)
| φdH7 | φD | L | ? | Ⅰ | F | New JIS key | Old JIS key | TAP M | Dimension of spring-pin for fixing | Swing of the center | Mass kg | Max. revolution min-1 | Max. transmission torque capacity N?m | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| aJs9 | b | aJs9 | b | |||||||||||||
| 6 | 12.5 | 65 | 13 | 20 | 25 | 2 | 1.0 | 2 | 1.0 | M3 | 2×12 | 0.10 | 0.04 | 640 | 2 | |
| 8 | 16 | 80 | 16.5 | 25 | 30 | 3 | 1.4 | 3 | 1.5 | M3 | 2.5×16 | 0.10 | 0.08 | 570 | 7 | |
| 10 | 20 | 90 | 17 | 28 | 34 | 3 | 1.4 | 4 | 1.5 | M4 | 3×20 | 0.14 | 0.15 | 460 | 12 | |
| 12 | 25 | 112 | 22 | 35.5 | 41 | 4 | 1.8 | 4 | 1.5 | M4 | 4×25 | 0.14 | 0.31 | 380 | 20 | |
| 14 | 25 | 112 | 22 | 35.5 | 41 | 5 | 2.3 | 5 | 2.0 | M5 | 4×25 | 0.14 | 0.29 | 380 | 20 | |
| 16 | 32 | 134 | 23 | 40 | 54 | 5 | 2.3 | 5 | 2.0 | M5 | 5×32 | 0.14 | 0.58 | 280 | 49 | |
| 20 | 40 | 164 | 28 | 50 | 64 | 6 | 2.8 | 5 | 2.0 | M6 | 6×40 | 0.20 | 1.11 | 230 | 93 | |
| 25 | 50 | 206 | 36 | 63 | 80 | 8 | 3.3 | 7 | 3.0 | M8 | 8×50 | 0.20 | 2.20 | 180 | 180 | |
| 30 | 60 | 275 | 56 | 89 | 97 | 8 | 3.3 | 7 | 3.0 | M8 | 10×60 | 0.25 | 4.12 | 150 | 282 | |
※You may download 3D CAD drawings by clicking on the part number of interest.
