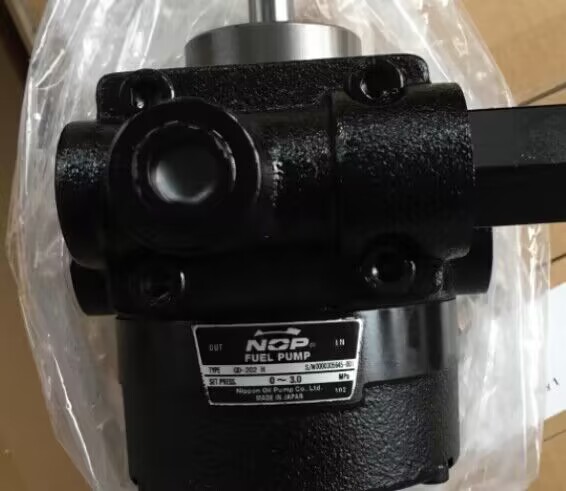

日本NOP擺線齒輪泵TOP-208HB
發布時間：2024-07-17

日本NOP擺線齒輪泵TOP-208HB

2HB

Specifications

Model / ItemTheoretical
Displacement
(cm3/rev)		Theoretical Discharge
(L/min)		Max.
Pressure
(MPa)		Max.
Revolution
(min-1)		Approx.
Weight
(kg)
1500min-11800min-1
TOP-203HB2.84.25.03.03,0003.5
TOP-204HB46.07.23.03,0003.6
TOP-206HB69.010.82.52,5003.8
TOP-208HB812.014.42.52,5004.0
TOP-210HB1015.018.02.52,5004.1
TOP-212HB1218.021.62.02,0004.3
TOP-216HB1624.028.81.51,8004.6
TOP-220HB2030.036.01.21,8005.0

Performance Table

?Standard discharge rate and required power at 1450 min-1 (50Hz)

Model / SpecificationsDischarge Rate (L/min)Required Power (W)
Pressure (MPa)Pressure (MPa)
0.10.51.01.52.02.53.00.10.51.01.52.02.53.0
TOP-203HB4.04.03.93.93.83.83.74884131178228277325
TOP-204HB5.85.75.65.65.55.45.366110169227283340394
TOP-206HB8.78.68.58.48.38.2-86158240329415497-
TOP-208HB11.611.511.511.411.411.3-91186305423543662-
TOP-210HB14.414.414.314.013.913.8-104210345480615749-
TOP-212HB17.417.217.016.816.6--123250405565730--
TOP-216HB23.122.922.822.4---148308510715---
TOP-220HB28.928.728.4----205396633----

Above data was taken by the oil:ISO-VG 46 at 40 Celsius

Performance Table

?Standard discharge rate and required power at 1750 min-1 (60Hz)

Model / SpecificationsDischarge Rate (L/min)Required Power (W)
Pressure (MPa)Pressure (MPa)
0.10.51.01.52.02.53.00.10.51.01.52.02.53.0
TOP-203HB4.94.84.84.74.74.64.558101158215272330386
TOP-204HB7.06.96.86.76.76.66.580133204274342410476
TOP-206HB10.410.310.210.110.09.9-104188290397500599-
TOP-208HB14.013.913.813.813.813.7-110225368510655800-
TOP-210HB17.617.517.217.016.916.7-125250413575740904-
TOP-212HB21.020.920.620.420.2--148302488681881--
TOP-216HB27.827.727.427.0---179372616863---
TOP-220HB34.834.634.3----248478764----

Above data was taken by the oil:ISO-VG 46 at 40 Celsius

2MY-2HBM

Required Power of Trochoid Pump

Model / Item1500min-1 (50Hz)1800min-1 (60Hz)
Theoretical
Discharge
(L/min)		Max. Pressure for Motor Output
(MPa)		Theoretical
Discharge
L/min		Max. Pressure for Motor Output
(MPa)
200W400W750W1500W200W400W750W1500W
TOP-203HBM4.21.73.03.03.05.01.33.03.03.0
TOP-204HBM6.01.23.03.03.07.20.92.33.03.0
TOP-206HBM9.00.71.82.52.510.80.51.42.52.5
TOP-208HBM12.00.51.32.52.514.40.31.02.32.5
TOP-210HBM15.00.41.12.52.518.00.30.92.02.5
TOP-212HBM18.00.30.92.02.021.6-0.71.62.0
TOP-216HBM24.00.20.71.51.528.8-0.51.21.5
TOP-220HBM30.0-0.41.21.236.0-0.30.91.2

Above data was taken by the oil:ISO-VG 46 at 40 Celsius
