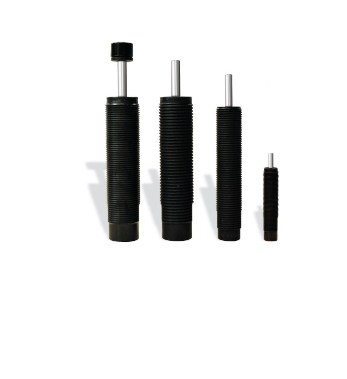

Hydraulic Shock Absorbers (ECO25MC-4B)

Non Adjustable, ECO Series

Part Number: ECO25MC-4B

ITT Enidine’s New ECO Series non-adjustable hydraulic shock absorbers can accommodate varying energy conditions. This family of tamperproof shock absorbers provides consistent performance, cycle after cycle. Non-adjustable models are designed to absorb maximum energy within a compact envelope size.

The ECO Series was designed using materials and fluids that are safe for our environment. Models can accommodate a wide range of operating conditions with varying masses or propelling forces. The ECO Series offers a flexible design to accomodate a wide variety of application parameters. Whether your application has a low velocity/high drive force or high velocity/low drive force condition, the New ECO Series will deliver the performance that you have come to expect.

Features and Benefits

? Extensive non-adjustable product line offers flexibility in both size and energy absorption capacity to fulfill a wide range of application requirements.
? Environmentally friendly materials:
- RoHS Compliant materials
- Bio-degradable hydraulic oil
- Copper-Free design
- Recyclable packaging materials
? Introducing our new Enicote II surface finish:
- RoHS Compliant
- Rated at 350 hours salt spray corrosion protection
? Jam Nut included with every shock absorber.
ISO quality standards result in reliable, long-life operation.
? Tamperproof design ensures repeatable performance.
? Threaded cylinders provide mounting flexibility and increase surface area for improved heat dissipation.
? Wrench flats promote ease of mounting
? Capability to mount into pressure chambers
? Integrated positive stopping capabilities up to 100 psi (7 bar).
? Special materials and finishes can be designed to meet specific customer requirements
- Optional fluids and seal packages can expand the standard operating temperature range from (15°F to 180°F) to (–30°F to 210°F)
