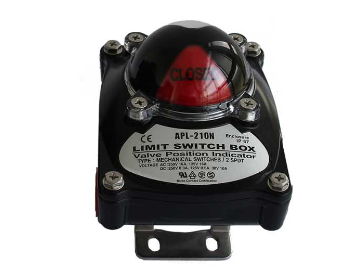

韓國HKC限位開關(guān)APL-210N

Material

? Aluminium alloy

Enclosure

?Standard: Ex db IIC T5 / IP67
? Watertight enclosure: IP68 (10 m, 72 hours)

Certificates & approvals

? IECEx (Ex db IIC T5 Gb)
? ATEX (II 2G Ex db IIC T5 Gb)
? KCs (Ex d IIC T6 IP68)
? CCC (Ex d IIC T5 Gb)
? SIL 2
? ABS type approval
? RMRS type approval

Travel angle

? Standard: 0-90°
? Option: 0-120°, 135°

Solenoid valve voltage

? 110/220 V ac 1ph, 50/60 Hz, ±10%
? 24 V dc

Solenoid valve port

? 3-way, NPT1/8, NPT1/4, G1/4
? 5-way, NPT1/4, NPT3/8, G1/8, G1/4

Ambient temperature

?-20 to +60 °C

Cable entries

? 3 x NPT3/4″, 3 x M20

Switches

? 2 x mechanical switches or proximity sensors

Terminal points

? Standard: 8 points
? Option: 10 points

Shaft

? Standard: stainless steel 304
? Option: stainless steel 316

Control option

? PIU: Potentiometer unit (1 kΩ, 10 kΩ)
? CPT: Current Position Transmitter (output: 4-20 mA dc)

Dome indicator

? No indicator
? 2-way, yellow(open) / red(close)
? 2-way, green(open) / red(Close)
? 3-way, T-port, yellow(open) / red(close)
? 3-way, T-port, green(open) / red(close)
? 3-way, L-port, yellow(open) / red(close)
? 3-way, L-port, green(open) / red(close)

Bracket

? Standard: stainless steel 304 / option: stainless steel 316:
-MBP-050 (25 x 50, H:20)
-MBP-100 (30 x 80, H:20)
-MBP-200 (30 x 80, H:30)
-MBP-300 (30 x 130, H:30)
-MBP-400 (30 x 130, H:50)

Weight

? 2.1 kg (without bracket)

Color

BlackRAL 9005OtherNano coatingEnhance corrosion resistance
