日本理研RIKEN KEIKI感應測頭RS-833C
發布時間：2024-05-24
日本理研RIKEN KEIKI感應測頭RS-833C
*All dimension drawings of the series can be downloaded together.
If you use CAD data, we will accept it by email.
Characteristics
You can download the external dimensions of each product.
*Select “Right click=Save the object into file” to save the data in a file.

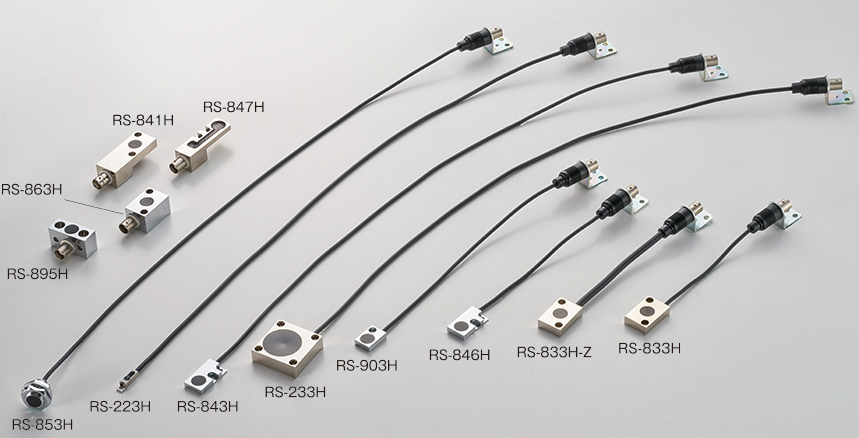

| Model | External Dimensions | Model used | Features |
|---|---|---|---|
| RS?223H | RS?223H(145kb) | RM-2305／RM-2505 RM-7302／RM-7304 RM-2412／RM-2414 | Micro/wire length 500 mm |
| RS?233H | RS?233H(148kb) | Large/wire length 500 mm | |
| RS?833H | RS?833H(148kb) | RM-6302 (Overseas only) RM-1310 RM-2305／RM-2505 RM-7302／RM-7304 RM-2412／RM-2414 | Standard type/Line length 100 mm *Product accessories |
| RS?833H?Z | RS?833H-Z(104kb) | RS-833H Same shape/Cable diameter Φ5.3 | |
| RS?841H | RS?841H(86kb) | RM-2305／RM-2505 RM-7302／RM-7304 RM-2412／RM-2414 | L type/without cable |
| RS?843H | RS?843H(147kb) | Thin/wire length 500 mm | |
| RS?846H | RS?846H(148kb) | Thin/wire length 130mm | |
| RS?847H | RS?847H(86kb) | L type/without cable/Thin | |
| RS?853H | RS?853H(106kb) | Round/wire length 500 mm | |
| RS?863H | RS?863H(85kb) | Embedding type | |
| RS?895H | RS?895H(85kb) | Without cable | |
| RS?903H | RS?903H(104kb) | Small and Thin/wire length 200mm |
■Custom-made sensor cables are also available.
■ Relay cables are also available in various lengths.
| Model | Features | Remarks |
|---|---|---|
| RS?833C | 3m Cable | |
| RS?835C | 5m Cable | Standard relay cable is included with the product. |
| RS?836C | 6m Cable | |
| RS?837C | 7m Cable | |
| RS?838C | 8m Cable | |
| RS?83AC | 10m Cable |
Due to product improvements, some specifications may change without prior notice.
