Materials Resistive element NiCr alloy foil Materials Base Polyimide Operating temperature in combination with major adhesives after curing (°C) EP-270: -269 to 30oC Operating temperature in combination with major leadwire cables (°C) Polyester-coated copper wire: -196 to 150oC Self-temperature-compensation (°C) -196 to 50oC Applicable linear expansion coefficients (×10-6/℃) 5, 11, 16, 23 Strain limits at normal temp. (approx. %) 2.2 Fatigue lives at normal temp. (times) 1x106 (±1500μm/m) When ordering, suffix the lead-wire cable code to the model number with a space in between.Major Properties
PC-600: -269 to 150oC
CC-33A: -196 to 120oC
Mid-temperature cable (L-11, L-12): -100 to 150oC
Fluoroplastic-coated high/low-temp. 3-wire cable (L-3): -196 to 150oCRelative images
Contents

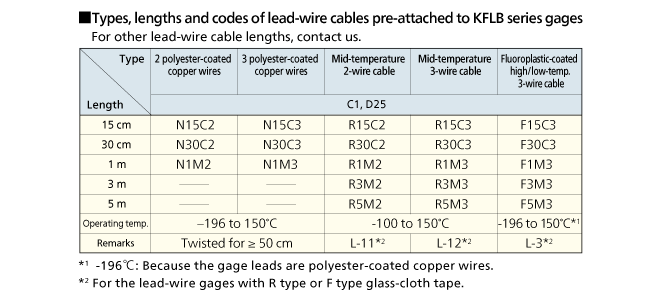

E.g.
KFLB-5-120-C1-11 with a fluoroplastic-coated high/low-temperature 3-wire cable 5 m
long pre-attached
→ KFLB-5-120-C1-11 F5M3
If no lead-wire cable code is suffixed, the gage is delivered with gage leads only.
(Silver-covered copper wires 25 mm long)
For details, please refer to the [Strain Gages with Pre-attached Lead Cables]
日本Sumitomo住友
您的當前位置：網(wǎng)站首頁 > 產(chǎn)品中心 > 日本Sumitomo住友
日本KYOWA共和應變片KFLB-02-120-C1-11
發(fā)布時間：2024-04-13
日本KYOWA共和應變片KFLB-02-120-C1-11
日本KYOWA共和應變片KFLB-02-120-C1-11
日本KYOWA共和應變片KFLB-02-120-C1-11
日本KYOWA共和應變片KFLB-02-120-C1-11
日本KYOWA共和應變片KFLB-02-120-C1-11
KFLB
Low-temperature Foil Strain Gages
The gage element is made of NiCr alloy, which exhibits excellent characteristics under low-temperature environments and is sandwiched between polyimde films. Thus, the KFLB series gages are suitable for strain measurement of tanks and vessels containing low-temperature liquids such as LNG and LPG.
