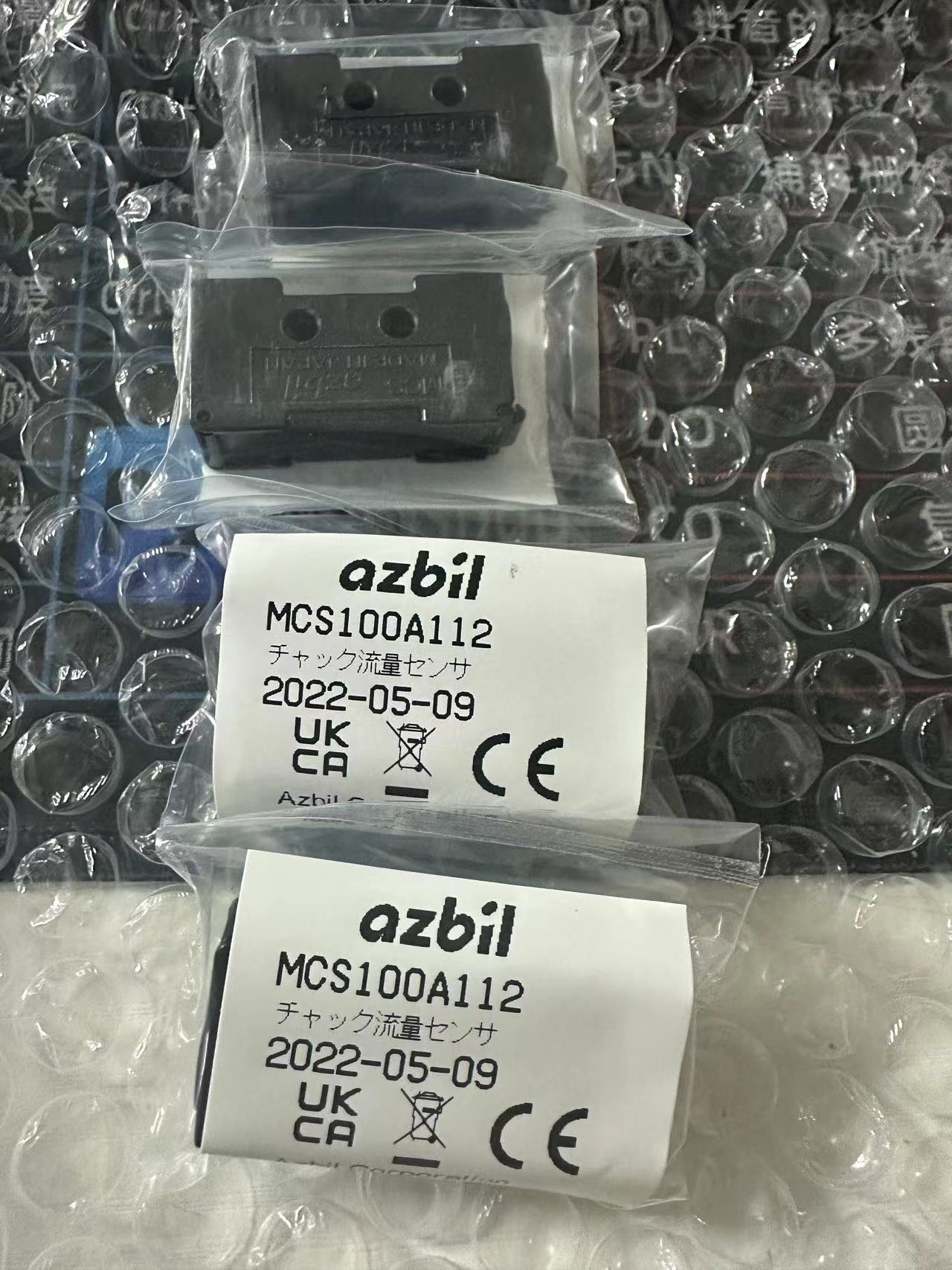

Mass Flow Sensor Model MCS100
www.azbil.com
Can measure mass flow rate according to the standard condition (20℃, 1 atm) of gas without temperature nor pressure compensation.
Small and light weight which can be installed wherever, it’s suited for a variety of flow measurements in such as laboratory and various industry applications. (33.5 x 10.5 x 17.0 mm, just 9g, without cable)
Fast response time : 5ms

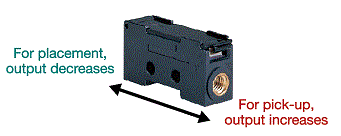

Bidirectional flow range
Low power consumption: 12mA max. at 24Vdc
Free mounting position and not required straight piping length
Measurement flow range line-up

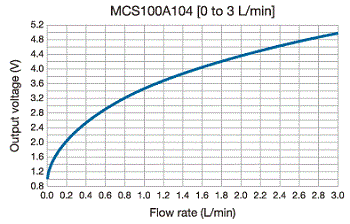

MCS100A104 : 0 to 3L/min MCS100A112 : 0 to+500mL/min MCS100A116 : 0 to 5L/min MCS100A120 : 0 to 10L/min

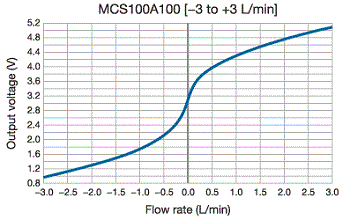

MCS100A100 : -3 to +3 L/min MCS100A108 : -500 to +500mL/min MCS100A128 : -10 to +10L/min
Construction specification
Typical applications
- Measures the mass flow rate intake of the pump without effects from temperature fluctuation or changes in atmospheric pressure. - Operates on battery power on handheld equipment.
- Useful for control of oxygen flow rate from compressor, without effects from fluctuation in room temperature or altitude. - Useful for replacing from a float meter.
- Measures flow rate of air supplied to eliminate heat haze. - Measures flow rate of nitrogen supplied to prevent oxidation. - Useful for replacing from a float meter or pressure gauge.

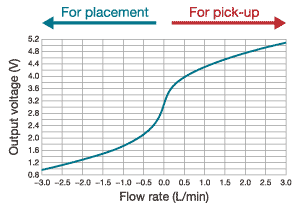

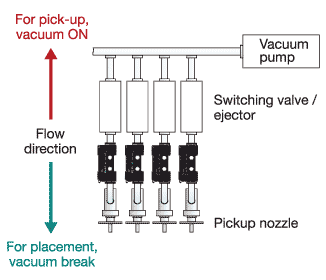

- Can be installed close to the pick-up nozzle. - Fast response is suitable for pick-up detection. - Measures slight differences in flow rate which cannot be detected by pressure. - Not affected by fluctuation in suction pressure, thanks to mass flow measurement. - Clogged or crushed nozzle is detectable by analog output.
pick-up
