日本MISUMI彈簧VUR16-35
發布時間：2025-04-28
日本MISUMI彈簧VUR16-35

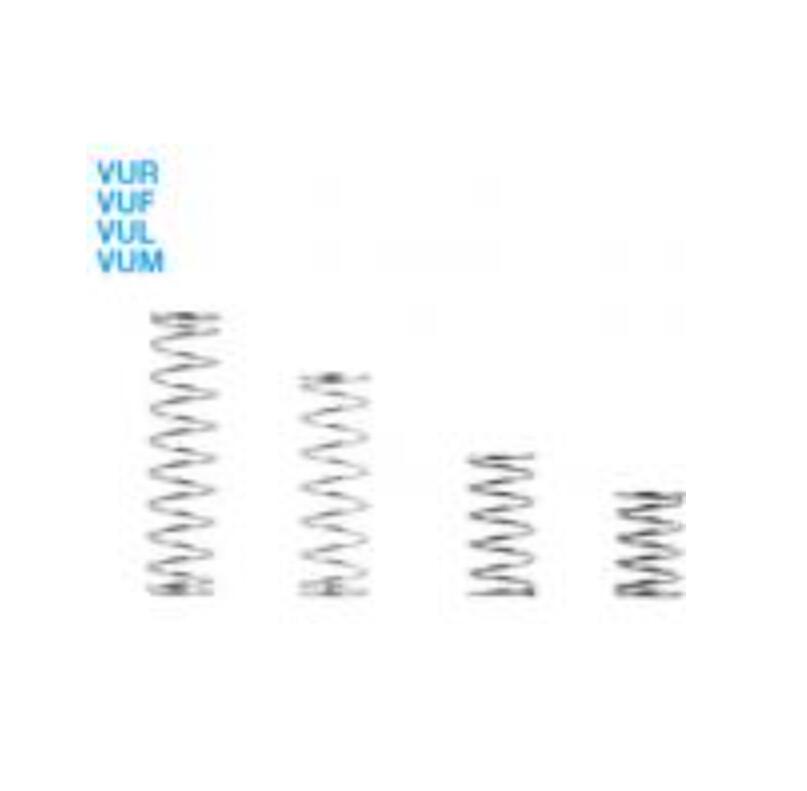

Compression Springs (VUR16-35)
Inner Diameter Selectable, Stainless Steel
Part Number: VUR16-35
? Material: Stainless Steel Wire
Configured Specifications
Download| Material | Stainless Steel (SUS304-WPB) | Allowable Load (Configurable Range)(N) | 4.51~8.50 |
|---|---|---|---|
| Max. Load(N) | 6.17 | Max. Loaded Height (Free Length - Allowable Deflection)(mm) | 14 |
| Free Length L(mm) | 35 | O.D. D (or D1)(φ) | 18.45 |
| I.D. D-2d (or D)(φ) | 16 | Spring Constant(N/mm) | 0.29 |
| Wire diameter(φ) | 1 | Solid Length(mm) | 9.5 |
| End Face Condition | Not Grounded | Total Number Of Turns Nt ※Reference Value | 8.5 |
| Allowable Deflection(mm) | 21 | RoHS | 10 |
