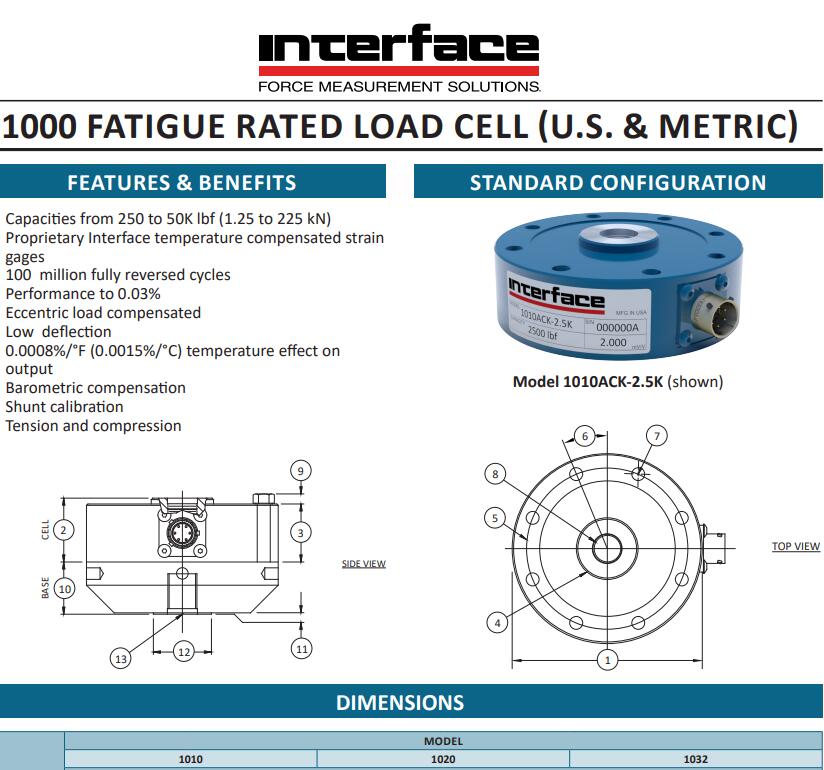

1000 Fatigue-Rated Universal LowProfile? Load Cell

Eccentric Load Compensated High Safe Overload

Get Your Free Quote

250 lbf to 50K lbf
1.25 kN to 225 kN

Model 1000 series is a fatigue-rated low profile load cell with 300% safe overload, extremely low moment sensitivity of 0.1%/in and a higher fatigue life. If you need to measure 1 pound (4.45N) or 1 million pounds (4500kN) of force, Interface load cells can do it.  With many variants and configurations our fatigue-rated load cells provide up to 100 million fully rendered cycles. The gaged sensors in every load cell are individually inspected and tested, and certified to meet our rigid standards.

Options Available for 2nd, 3rd Bridge and Overload Protection.

Models 1010, 1020, and 1032 are available.

Features and Benefits

• Capacities from 250 lbf to 50K lbf (1.11 kN to 222 kN)

• Proprietary Interface temperature compensated strain gages

• Performance to 0.03%

• Eccentric load compensated

• Low deflection

• 0.0008%/°F (.0015%/°C) temp. effect on output

• Barometric compensation

• Shunt calibration

• E74 NIST Traceable Tension and Compression Calibration (Optional)
