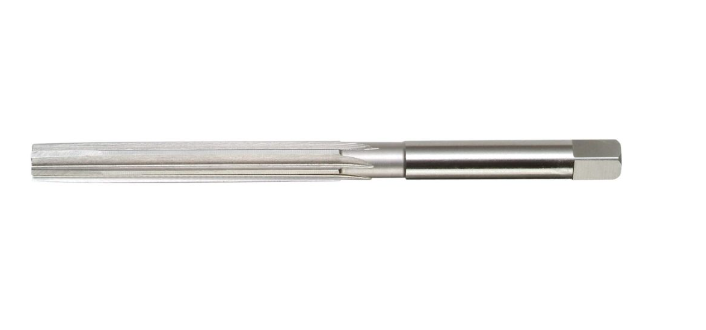

日本Eikosha高速鋼鉸刀HR1.3
日本Eikosha高速鋼鉸刀HR1.3
Configured Specifications
Tool Diameter(mm)
1.3
Shank Type
End Mill Shank
work material
general steel[○] / Cast Iron[○] / Aluminum[○] / Copper[○] / Die Steel[○] / Alloy Steel[○]
Groove Length(mm)
25
Coating Y/N
NA
Groove Shape
Straight
Base Blade Y/N
NA
blade shape
Right blade straight
Diameter tolerance(mm)
+0.002～+0.007
Number of flutes(Sheets)
4
Full length L(mm)
50
Bite length T(mm)
5
Tool Diameter(inch)
-
shank diameter
3
Shank diameter tolerance
-0.02～-0.05
Tool Material Type
High-speed steel
Center
60° Convex
RoHS?
-
Basic information
General-purpose straight reamer (HSS) with straight edge that can be hand turned.
[Features]
· The shank has an angle and can be hand turned.
· The bite is long (angle set at 1°) and the cutting edge does not easily get damaged.
· Blade tip diameter: Available from 0.5 to 60.
· Shank type: Available in end mill shank and straight shank.
· Applicable work materials: General steel, cast iron, aluminum, copper, die steel and alloy steel.
· Material: SKH51. Right-blade Straight, Bite Angle: 1°.
[Applications]
· Optimal for general purpose finishing.
