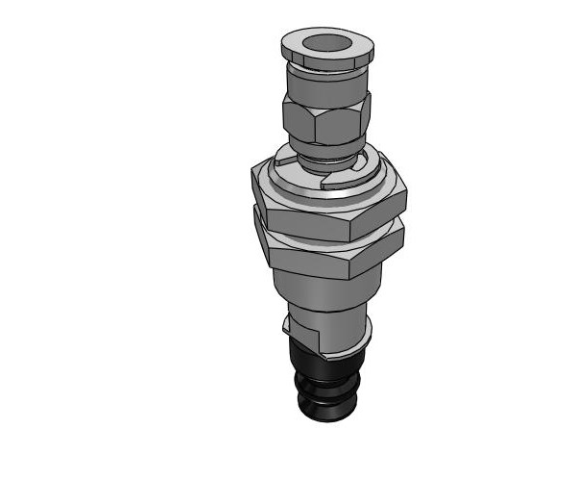

日本PISCO真空墊VPHC10-PLBS-6J
日本PISCO真空墊VPHC10-PLBS-6J
Vacuum Pad
VPHC10-9LBS-6J
RoHS2 Compliant
Best suitable for extracting plastic products or conveying fragile work.
Weight
21.0g
Shipping unit
1pc.
Port size
Pad dia.
| Pad dia. | φ10mm |
|---|
Port (Push-in fitting)
| Tube O.D. | φ6mm |
|---|
Product Line-up
Symbol
-T15

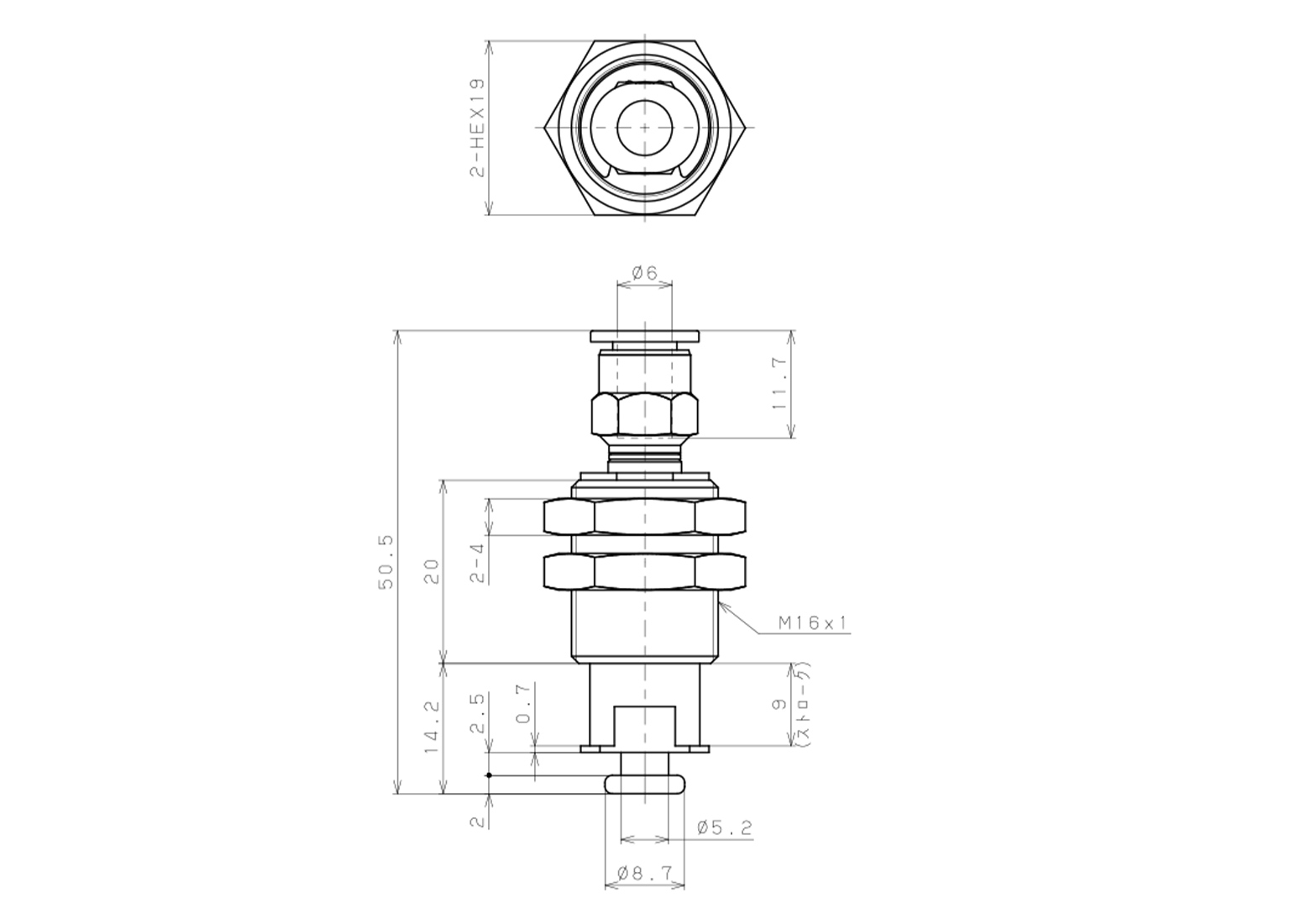

Vacuum Pad Holder Only
VPHC-T15-9-6J

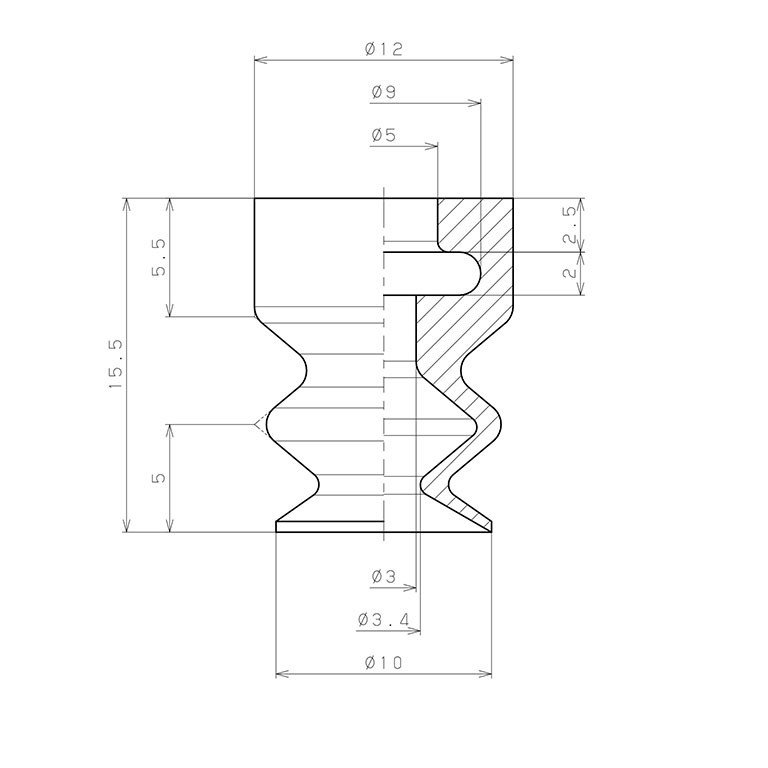

Vacuum Pad Rubber Only
VP10LBS
Model code of pad rubber for maintenance
VP10LBS
Specifications
Pad material
| Material | Silicone rubber |
|---|
形狀；スプリング式 真空取出口 上 ワンタッチ継手付

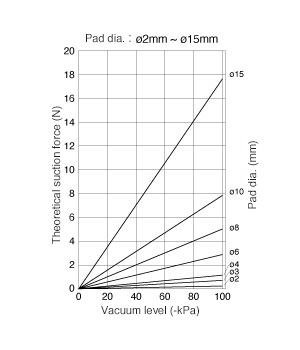

Theoretical Suction Force Graph
Advantages
Best suitable for extracting plastic products or conveying fragile work.
Soft and flexible pad enables to pick up paper, and also leaves less mark on plastic molded articles.
Detailed Safety Instructions
Caution
1.For the soft bellows pads, use the allowable pressing stroke as a guide, do not crush the bellows too much. Excessive crushing may cause premature wear of the bellows, cracking of the lip, and deformation due to strain, which may result in suction failure.
2.When selecting a product, pay attention to the following points and perform the suction test on the actual application. (1) Due to the characteristics of the material, the bellows may stick to each other and deform depending on the usage conditions.
3.The VPHC type pad holder is not conductive. When using a vacuum pad made of a conductive material, take measures to allow electricity to escape directly from the pad rubber.
