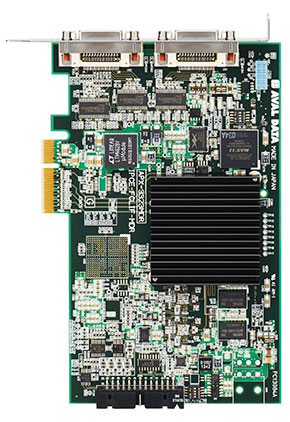

日本avaldata圖像采集卡APX-3323MDR/APX-3323MDRA
發布時間：2025-01-15
日本avaldata圖像采集卡APX-3323MDR/APX-3323MDRA
日本avaldata圖像采集卡APX-3323MDR/APX-3323MDRA
APX-3323MDR
CL Base/ Medium/ Full x 1Ch Frame Grabber
| Model | APX-3323MDR |
| Image input I / F | Camera Link Base/Medium/Full x 1Ch with MDR 26pin Connector Sampling clock 85 MHz (MAX) Area, line camera compatible |
| PoCL | Correspondence |
| MEGA-FIFO | DDR2-SDRAM 256MB |
| Image processing | Tap Sort + Line Inversion |
| Sync output | Camera control signals: CC1 to CC4 General purpose output: 3ch asynchronous, TTL / open collector (Available with the strobe timing output) |
| Sync input | External trigger: TTL / open collector / differential signal RS-422 Encoder: differential signal RS-422 (line driver), A / B / Z phase, 1 MHz (MAX) General purpose input: TTL / open collector |
| Event | Image input start, DMA end, GPIN etc. |
| System bus | PCI Express 2.0 x4 (Gen2) 2.5GT / S |
| Power | + 12V |
| Environment | 0 ℃ to 50 ℃, humidity: 35% to 85% (no condensation) |
| Dimension | 168 mm × 112 mm Panel width 20 mm (excluding projections) |
| Supported OS | Windows 10 / 7 compatible with 32 bit / 64 bit, Linux |
| Software (option) | SDK-AcapLib2 |
Notes)
– The specifications and appearance stated are subject to change without notice.
– Power consumption does not include inrush current.
– In order to use the product correctly, be sure to read the instruction manual before using the product. Also, use the product under the conditions applicable to your product warranty
