臺達伺服電機ECM-B3M-E21315RS1
發布時間：2025-01-02

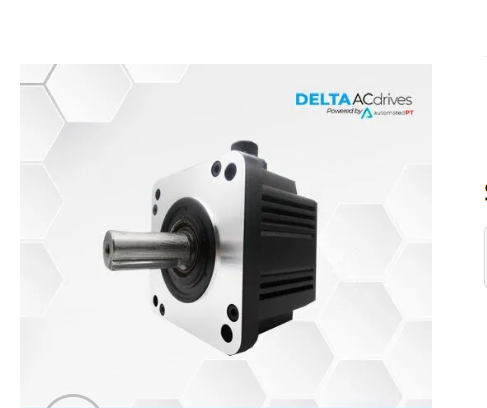

臺達伺服電機ECM-B3M-E21315RS1
臺達伺服電機ECM-B3M-E21315RS1
ECM-B3M Medium Inertia Motor Series
Drive Resolution: 24-Bit
1.5 KW
Standard connector and standard shaft diameter
No Brake – With Oil Seal
Rated Torque: 7.16 (N-m)
SPECIFICATIONS
| Model Name | ECM-B3M-E21315RS1 |
| Motor Series | ECM-B3M Medium Inertia Series |
| Output Power | 1.5 KW |
| Torque | 7.16 (N-m) |
| Voltage | 220 VAC |
| Phase | 1 / 3 (PH) |
| Rated Current | 8.17 Arms |
| Instant Max Output Current | 26.82 Arms |
SERIES DESCRIPTION
ECM-B3 series is Delta’s newest generation of servo system motor. Compatible with the ASDA-B3 servo drive.
Features Include
Low and medium inertia options available
Multiple options for encoder type, brake, oil seal, and shaft
