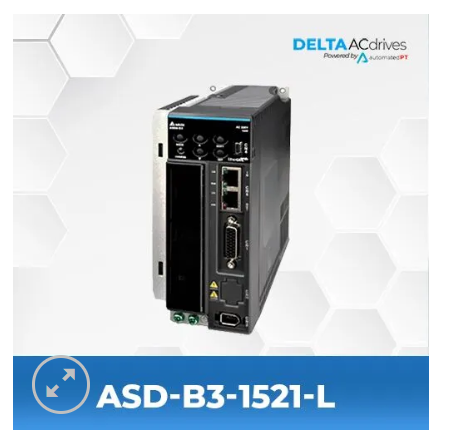

臺達伺服控制器ASD-B3-1521-L
發布時間：2025-01-02
臺達伺服控制器ASD-B3-1521-L
SPECIFICATIONS
| Model Name | ASD-B3-1521-L |
| Series | B3 Servo Drive |
| Phase | 1/3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 1.5 Kilowatts |
| Continuous Output Current | 8.3 Arms |
| Instant Max Output Current | 27 Arms |
| Model Type | PT Mode Pulse Input, PR Mode, RS-485, Analog Voltage Control |
CATALOG & MANUALS
| Catalog | Delta ASDA B3 Servo Drive Catalog | |
| Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
3.1 kHz Bandwith
24-bit encoder
6000 r/min motor support
Closed loop status control
Software supporting vibration suppression, auto-tuning, graphical configuration
DC Bus Sharing
Smaller drive and motors compared to B2
| MODEL NUMBER | RATED OUTPUT POWER | RATED TORQUE |
|---|---|---|
| ECM-B3M-E21315CJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315CS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315DJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315DS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315PJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315PS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315QJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315QS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315RJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315RS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315SJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-E21315SS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315CJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315CS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315DJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315DS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315PJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315PS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315QJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315QS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315RJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315RS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315SJ1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EA1315SS1 | 1.5 kW | 7.16 (N-m) |
| ECM-B3M-EM1315CJ1 | 1.5 kW | 7.16 (N-m) |
