日本NSD編碼器VRE-P062SAC/SH-01
發(fā)布時間：2024-12-26
日本NSD編碼器VRE-P062SAC/SH-01
日本NSD編碼器VRE-P062SAC/SH-01
Description

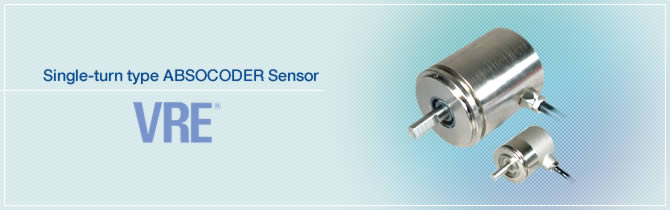

NSD single turn absolute position sensor named VRE ABSOCODER is an electro-mechanical sensor that measures the angular position under magnetic reluctance change.
Model coding
| List of sensor model | Type | Mounting | Shaft shape | Connector type |
|---|---|---|---|---|
| VRE-P028SAC | P028 | S | A | C |
| VRE-P062SAC | P062 | S | A | |
| VRE-P062SBC | B | |||
| VRE-P062FAC | F | A | ||
| VRE-P062FBC | B | |||
| VRE-16TS062FAL | 16TS062 | A | L | |
Type : P[Standard] 16TS[High-resolution]
Mounting : S[Servo-mount type] F[Flange-mount type]
Shaft shape : A[Flat] B[Key way]
Connector type : C[Cable & connector] L[connector]

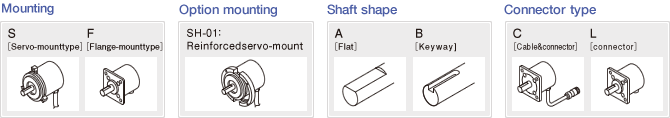

![Mounting S[Servo-mount type] F[Flange-mount type] Option mounting SH-01 : Reinforcedservo-mount Shaft shape A[Flat] B[Key way] Connector type C[Cable & connector 1] L[connector]](/public/Home/images/upload/image/20241226/1735201662873467.gif)
