日本PISCO真空過濾器DMM100-8
發布時間：2024-12-26
日本PISCO真空過濾器DMM100-8
日本PISCO真空過濾器DMM100-8

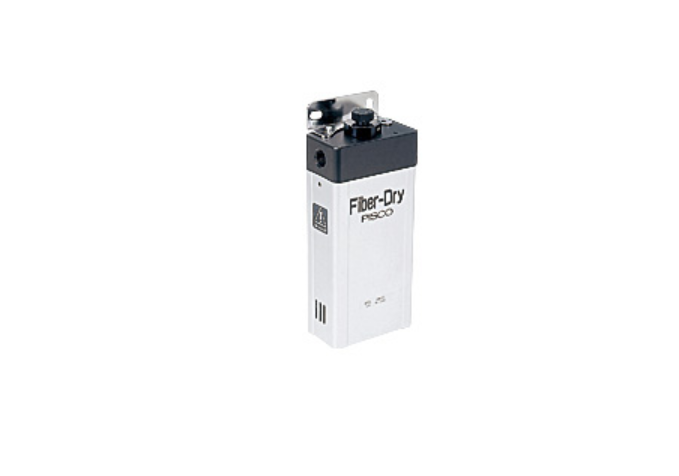

Compact Fiber Dryer (DMM100-8)
Metal Dryer Unit, DMM100 Series
Part Number: DMM100-8
[Features]
· Connects by sensing the filter in the middle of the hollow fiber membrane type air dryer pipe without requiring power supply.
· Water droplets removed from the refrigerated dry air are discharged in the form of water vapor.
· One-touch fitting is built-in to enable regulation of the purged air flow which cannot be drained.
Configured Specifications
| Application | Inline | Types | Dryers |
|---|---|---|---|
| Method | Hollow Fiber Type | Shape | Standard |
| Outlet Flow Rate(l/min) | 100 | Exit Flow Rate Class(l/min) | Up to 100 |
| Supply Side Connection Type | One-Touch Pipe | Body Material | Metal |
| Inlet Air Temperature(°C) | 40 | Inlet Air Pressure(MPa) | 0.85 |
| Supply Side Plumbing Thread Nominal | - | Supply Side Connecting Tube Diameter | ?8 |
| Output side, Types of connection | One-Touch Pipe | Output, Nominal of Plumbing Threads | - |
| Output, Connected Tube Diameter | ?8 | RoHS | 10 |
