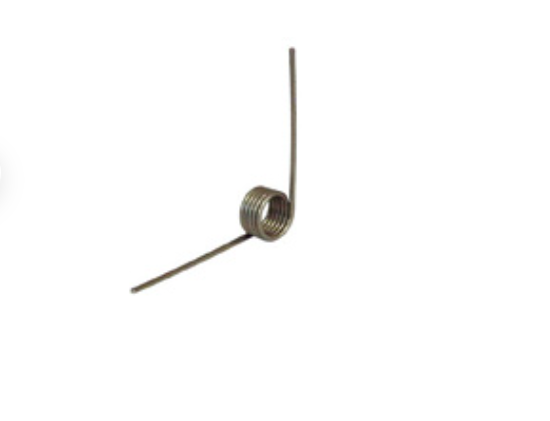

日本SHOWA昌合鈕簧STB04-05-024
發布時間：2024-12-02
日本SHOWA昌合鈕簧STB04-05-024 (10個/袋)
Torsion Springs【1-10 Pieces Per Package】 (STB04-05-024)
304 Stainless Steel (SUS304WP-B), Various Turn Counts
Part Number: STB04-05-024
We have standardized this torsion coil spring to help customers with spring design or calculation issues.
[Features]
- Made of stainless steel wire (φ 0.3 mm to φ 2.0 mm in diameter) with cold-molding for general use.
- JISG4313 (stainless steel wire for spring) type B, SUS304WP-B.
- * Features corrosion and heat resistance (to about 250 °C).
- 350 °C to 400 °C low temperature annealing (no surface treatment).
Configured Specifications
| Free Angle θ | Right Winding 135° coils | Material | Stainless Steel (SUS304WP-B) |
|---|---|---|---|
| Inner Diameter ID | 4 | Allowable Twist Angle Фd(deg) | 67 |
| Wire Diameter d(?) | 0.5 | Number of Coils | [4] 4.125 |
| Free length(mm) | 24 |
