日本LINE萊茵機械計數器RSL-204-5(III)
發布時間：2024-11-26
日本LINE萊茵機械計數器RSL-204-5(III)
日本LINE萊茵機械計數器RSL-204-5(III)

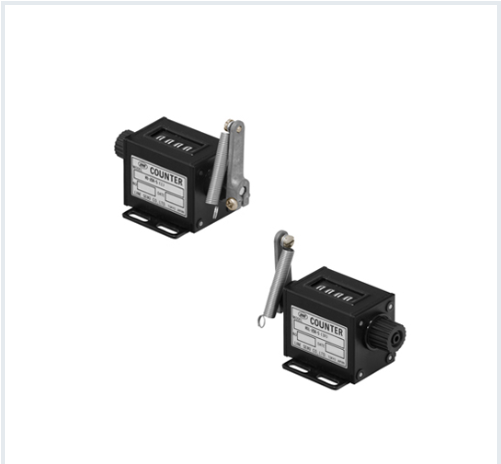

RS-204/RSL-204 Series (Mechanical Counters)
5 digits
Ratchet
1000 counts per minute
Knob reset
| Features | 1 count for each 40 - 45° actuation of lever. Shaft position (right/left) and count direction (top-coming/top going) selectable. Lever and spring included. |
|---|
Models
| Models (Click the model to display the rotation for Additive) | Count Direction / Shaft Position |
| RS-204-5(I) | Shaft on right Top Going |
| RS-204-5(II) | Shaft on right Top Coming |
| RSL-204-5(III) | Shaft on left Top Going |
| RSL-204-5(IV) | Shaft on left Top Coming |
Specifications
| Type | Totalizer |
|---|---|
| No. of Digits | 5 |
| Digit size (H) | 4.4mm |
| Count Method | Ratchet (Adds 1 count for each 40 – 45° actuation of lever) |
| Count Range | 0 – 99999 |
| Maximum Count speed | 1,000 count/min |
| Reset | Knob |
| Weight | Approx.60g |
| Ambient Temp. : Operating | -5 – +40°C (Non-freezing) |
| Ambient Humid. : Operating | 85%RH maximum (Non-Condensing) |
| Compliance | RoHS |
| N.B. | Count Direction and Shaft Position selectable |
