日本ANRITSU安立計器溫度探頭U-221E-01-D0-1-TC1-ANP

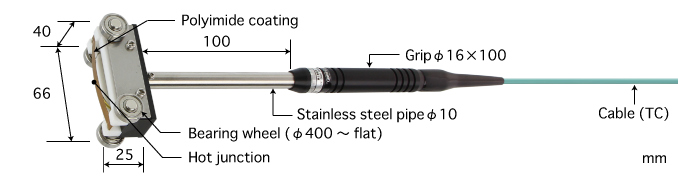

Model U series / General Moving ? Rotating Surface Probes
Type E : Model U-221E-01-D0-1-TC1-ANP
Type K : Model U-221K-01-D0-1-TC1-ANP
Product Info
Temp. range
-50°C to 200°C
Tolerance
0°C ≦ t ≦ 200°C : ±2.5°C
* t : Measured temperature
Response time
3.5s
Durability
More than 1500 hours continuously
Guard material
Bearing wheel
Corting of contact section
Polyimide coating
Guard form
φ400mm to flat
Cable type and length
Type E : TC-E 1m
Type K : TC-K 1m
Plug
Type E : ANP-E-M-L
Type K : ANP-K-M-L
Repair
Repairable
Remarks
* The operating temperature limit is determined by the allowable temperature limit of the probe head contacts the measurement target.
Note that the operating temperature limit is not the same as the allowable temperature limits of the grip,cable,and plug.
* The response time is the time required to detect 99% of the ture value on a flat and smooth metal surface.
* Durability is the time that a flat and smooth metal surface moving at 200 ° C and 200 m / min can be measured within tolerance.
* Please contact the distributor for price and delivery.
