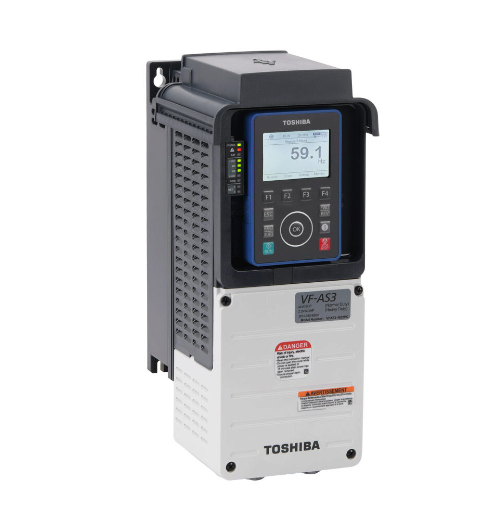

日本TOSHIBA東芝變頻器VFAS3-4300PC-F

日本TOSHIBA東芝變頻器VFAS3-4300PC-F

Toshiba AS3 series AC high-performance drive, UL Type 1, 460 VAC, 3hp with 3-phase input, V/Hz, FOC, encoder or torque mode, A1 frame, Ethernet and RS-485, integrated dynamic braking. Optional EtherCAT, encoder and I/O cards available.

Sensors

• BrandToshiba

• ItemDrive

• Controller TypeHigh-performance

• SeriesAS3

• Voltage TypeAC

• Nominal Drive Input Voltage460 VAC

• Nominal Drive Output Voltage460 VAC

• Number of Input Phases3

• Number of Output Phases3

• Horsepower By Input Phase3hp with 3-phase input

• Amperage Rating5.6A

• Variable Torque Amperage Rating9.3A

• Control ModeV/Hz, FOC, encoder or torque

• Safe Torque Off (STO)Yes

• Temperature Rating-15 to 50 deg C

• Enclosure TypeUL Type 1

• IP RatingIP20

• MountingPanel or wall

• Frame SizeA1

• Dynamic BrakingIntegrated dynamic braking

• Communication Port and Connection Type(s)

• Port Protocol(s)

• Port Speed(s)

• Input Signal

• Output TypePWM output

• Reverse CapabilityBuilt-in

• Internally BypassedNo

• Carrier Frequency Range1-16 kHz

• Output Frequency Range0.1-590 Hz

• Number of Analog Input Channels3

• Number Of Input Channels3

• Analog Input Signal TypeCurrent/voltage

• Number of Non-Isolated Analog Input Commons1

• Number of Points per Analog Input Common3

• Input Resolution11-bit

• Input Current Signal Range0-20 mA, 4-20 mA

• Input Voltage Signal Range+/- 10 VDC

• Number of Analog Output Channels2

• Number Of Output Channels2

• Analog Output Signal TypeCurrent/voltage

• Number of Non-Isolated Analog Output Commons1

• Number of Points per Analog Output Common2

• Output Resolution10-bit

• Output Current Signal Range0-20 mA and 4-20 mA

• Output Voltage Signal Range0-10 VDC

• Number of Discrete Input Points8

• Nominal Discrete Input Voltage24 VDC

• Discrete Input TypeSinking/sourcing

• Number of Non-Isolated Discrete Input Commons2

• Number of Points per Discrete Input Common4

• Number of Discrete Output Points3

• Nominal Discrete Output Voltage250 VAC and 30 VDC

• Discrete Output TypeRelay

• Relay Configuration(1) Form C (SPDT) relay, (2) Form A (SPST) relays

• Number of Isolated Discrete Output Commons3

• Number of Points per Discrete Output Common1

• Load Current2A/point relay

• Fuse TypeUser-supplied external fuse

• Programming LanguageUser sequence

• SCCR Rating100kA SCCR

• Connector TypeScrew terminals

• For Use With3-phase induction and permanent magnet AC motors
