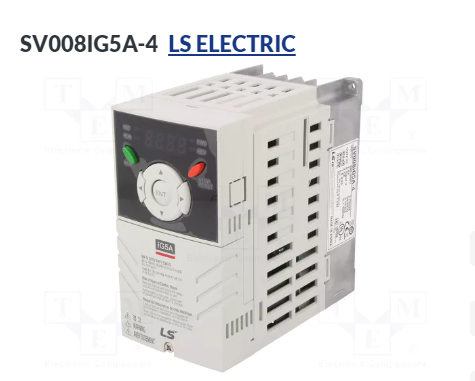

韓國LS變頻器SV008IG5-4
發布時間：2024-11-15
韓國LS變頻器SV008IG5-4
SPECIFICATION
Manufacturer | LS ELECTRIC | |
Type of module | Inverter | |
Max motor power | 0.75kW | |
Inverter output voltage | 3 x 380V AC | |
Voltage between phases (for three phase system) | 3 x 380...480V AC | |
Input 1 properties | rotational speed setting with signal 0...10V, 4...20mA, 0...20mA | |
Voltage output | 0...10V | |
Electrical connection | screw terminals | |
Mounting | for wall mounting | |
The programming method | keypad | |
Protection OCP - Over Current Protection | anti-overload OPP, anti-overvoltage OVP, overheating OTP, short circuit protection SCP, voltage drop BOP | |
Number of inputs | 5 | |
Number of analog inputs | 1 | |
Operating temperature | -10...40°C | |
Output frequency | 0.1...400Hz | |
Starting/stopping time | 0.1...6000s | |
Current rating | 2.5A | |
Digitally/analogously set output frequency accuracy | 0.01/0.01% | |
Number of analog outputs | 1 | |
Manufacturer series | iG5A | |
Related items | SV-IG5A-RC-2M |
