日本Showagiken昭和技研旋轉接頭SXO-091-3RH
發布時間：2024-11-14

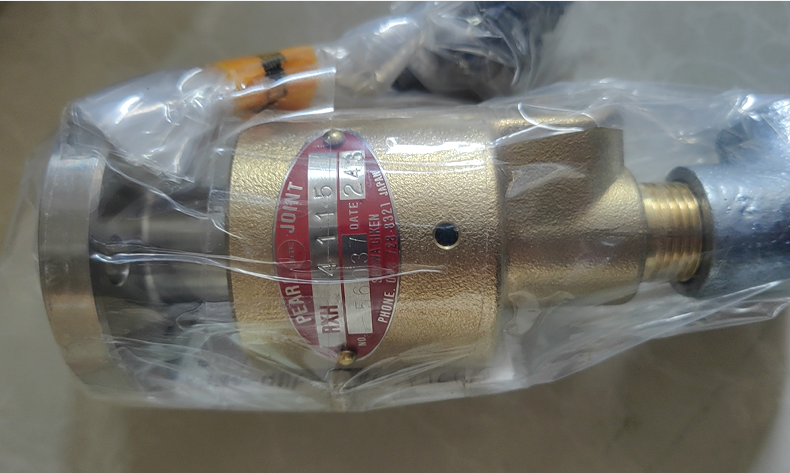

日本Showagiken昭和技研旋轉接頭SXO-091-3RH
Rotary & Swivel Joints (SXO-091-3RH)
Pressure, Pearl, 90°, SXO Series
Part Number: SXO-091-3RH
? Type: Simplex
? Max. Operating Temperature (?): 120
? Max. Operating Pressure (mpa): 6.9
? Max. Rotational Speed (rpm): 10000
? Type Of Connection: Screw?Screw Connection
Configured Specifications
Download
| Types | Simplex | Compatible Fluid | Water / Oil |
|---|---|---|---|
| Maximum Operating Temperature(°C) | 120 | Maximum Operating Pressure(MPa) | 6.9 |
| Maximum Rotational Speed(rpm) | 10000 | Connection Type | Screw Mounting Type |
| Type of Connection Thread Supply Side (Single Unit, Swivel) | Rc | Type of Connection Thread Exhaust Side (Single Unit, Swivel) | M |
| Nominal Connection Thread Supply Side (Single Unit, Swivel) | [3/8B] 3/8 | Nominal Connection Thread Exhaust Side (Single Unit, Swivel) | M16x1.5 |
| Mounting Screw Direction | RH (Right Screw) | Seal Type | High-Grade |
