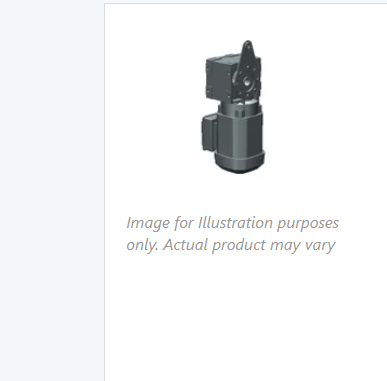

SEW減速機WA30DRS71M4BE1/WA30DRN80MK4BE1

Speed [r/min] : 1690 / 103

Total ratio [i] : 16.33 / infinite

Output torque [Nm] : 41

Service factor SEW-FB : 1.45

Mounting position : M2A

Term.box.pos.[°] / cable entry : 180 (L) / position 3

Lubricant / -volume [l] : SEW PG 460 Synth.Oil / 0.40

Paint coat : Top coat RAL7031 (blue gray)

Hollow shaft : 20mm

Design : Hollow shaft

Safety cover : None

General access. feature : Torque arm with fastening parts

Documentation no. A : 25803557 29151473

Parts list : 202561500

Motor power [kW] : 0.55

Motor power [HP] : 0.75

Motor frequency [Hz] : 60

Cyclic duration factor S1-S10 : S1

Motor voltage [V] / conn. type : 230/460 double star/star

Rated current [A] : 2.50 / 1.25

cos phi : 0.71

Wiring diagram : R76 / 680430506

Thermal cl.[°C]/Enclosure[IP] : 130(B) / 54

Service factor motor : 1.15

Efficiency at 50/75/100% Pn [%] : 73.5 / 76.0 / 74.0

CE mark : Yes

Design specification : USA (UR) /Canada (CSA)

EISA identification : Yes, conform to EISA

K.V.A.code : G

Terminal box : Terminal box lower part made of aluminum  with tapped hole 2xNPT 1/2"

CT speed range : 300-1800rpm

Documentation no. A : 25957090

Nameplate : English

Nameplate position : 270°

Opera.instr. A lang./quantity : Italian

Parts list/language/quantity : Italian / 0
