日本NITTA接頭103N-M5/103N-M5UL
發布時間：2024-11-11
日本NITTA接頭103N-M5/103N-M5UL

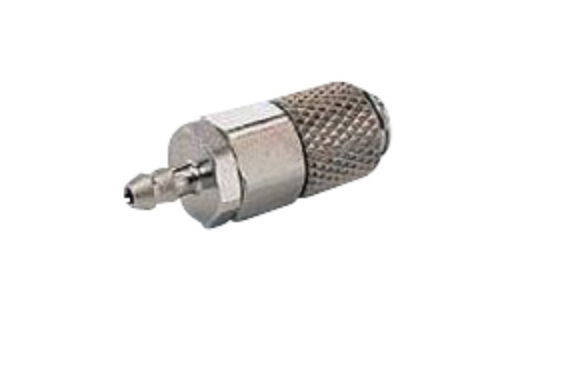

Coupler (103C-25H)
U5 Tube - Dedicated Barb Type 103C-H, QDC 101 Series
Part Number: 103C-25H
With the 103C-HL, connecting the coupler to the nipple automatically opens the valve on the coupler. Our lineup includes an integrated bamboo fitting. Can be connected directly to a dedicated U5 tube.
Configured Specifications
Download
| Type | Standard | Body Material | Brass |
|---|---|---|---|
| Adhesive Material | NBR Nitrile Rubber | Compatible Fluid | Water / Air / General Hydraulic Oil |
| Male/Female | Coupler | Valve Structure | Single Passage Opening/Closing |
| Thread Type | [For Tube Mounting] Barbed Type | Operating Environment Application | Standard |
| Operating Pressure Range(MPa) | ～1.0 | Applicable Tube Type | U5-4-4X2.5 |
| Operating Temperature Range (Air During use)(℃) | -20~80 | Operating Temperature Range (Water During use)(℃) | 0~80 |
