Modular Controllers (Process/Temperature Controllers)
SRZ

• Measurement accuracy: ±0.2% of displayed value

• Sampling time: 0.25 sec.

• 4-channel control per module

• Front loader communication port

• Digital Input/Output and CT Input Modules

• Communication converters of various field bus communication can be connected.

Main features

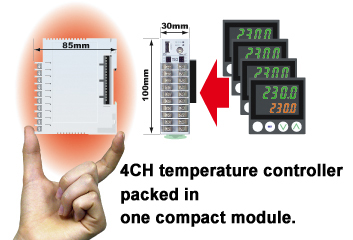

Four temperature controllers are concentrated into one compact module.

One compact module enables 4-channel control. (2 channels per heat/cool control type)

Up to 16 (max.64 channels) Temperature control modules (Z-TIO) can be connected.

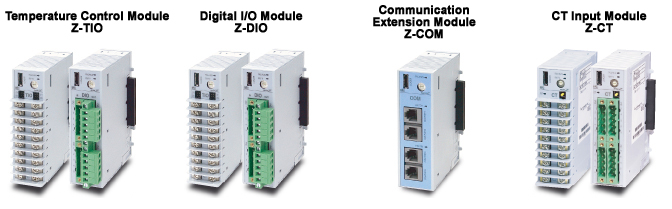

Various dedicated modules are available

Z-TIO: Temperature control modules :
Temperature/Process control modules

Z-DIO: Digital input/output modules :
Modules that can handle mode switching and event outputs.

Z-COM: Extended communication module :
Module used for data management when a communication conversion module is connected.

Z-CT: CT Input Module :
Modules for handling CT inputs for heater break alarm, multiple CT monitoring and overcurrent alarm.

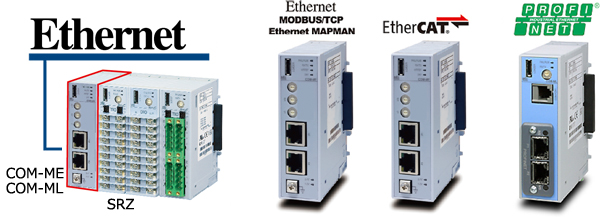

Connected to various field bus network (Communication converter)

Connection to Ethernet network (MODBUS/TCP, EtherCAT, PROFINET)

We can also provide communication converters that can handle connection to CC-Link, DeviceNet, PROFIBUS, and MECHATROLINK.

For the details of the communication converters, please click here.

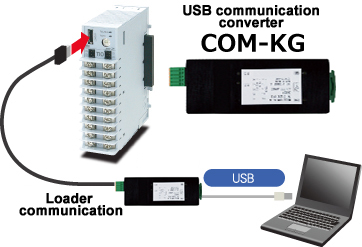

Loader communication

All modules are equipped with a front loader communication port for ease of maintenance.

Configuration data management software (PROTEM2) is available.
