日本OTSUKA大冢牌放大鏡SKKL-B 10X
SKKL-B
SKKL series
SKKL-B
■Product features
The SKKL-B model is a self-supporting desktop product.
The newly designed, LED-exclusive slim head uses a board-mounted LED with high color rendering (Ra≧90) and heat generation.
A flat, diffuser and protector will reduce the work and the light source as well as the glare unique to LEDs.
The on/off switch is on the head for better control.
The newly designed table stand takes work efficiency into account, providing plenty of work space and staying out of your way.
An electronically conductive mat in the shape of the table stand is available as an optional purchase. Place on top of the table stand to prevents dirt from building up and protect your work. Connect correctly with the ground to turn the table stand into a temporary static-free space. (Ground Resistor of the Mat: R≦108)
■Product Name
LED Illuminated Magnifier
■Model

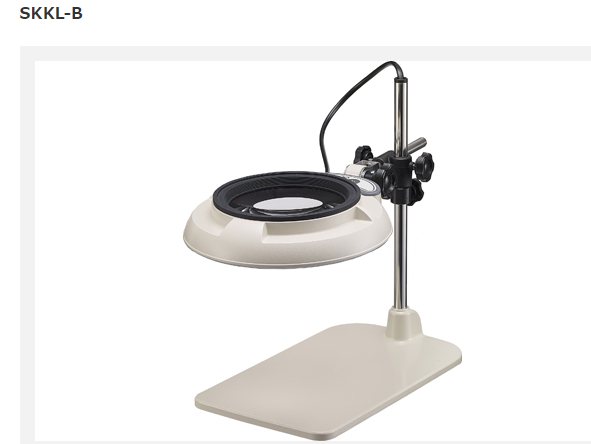

SKKL-B (Table Stand Type Illuminated Magnifier)
■Product Specifications
| Lens | |
|---|---|
| Magnifier Lens Magnification Lineup | 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x |
| AR (anti-reflection) Coated Lens Lineup | Available / 2x, 3x, 4x, 6x, 8x, 10x |
| Lighting | |
| Light source | High Color Quality White LED(CRI≧90) with Protective cover for diffusion |
| Input voltage | 100～240V: 50/60 Hz: Plug Type A *Change or purchase an additional AC cord to use at 125-240V. Please contact your sales dealer for details. |
| Power consumption | 7W |
| Dimming Function | Not available |
| Body | |
| Weight (Kg) | 1.9kg (Without lens and AC adapter / body weight) |
| Virtical/Horizontal Bar (Φ/mm) | ?16/?13 |
| AC Adapter | dimension 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires) |
| Operating temperature range | 5℃ ～ 35℃ |
| Dustproof and waterproof protection grade | IP20 (indoor use only) |
