日本Sensatec接近傳感器MDS-L5U-5V/MDS-L5U1-5V
發布時間：2024-09-24

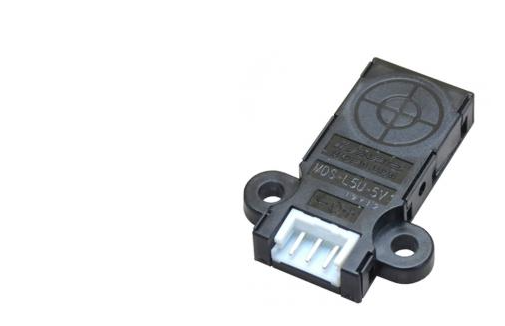

日本Sensatec接近傳感器MDS-L5U-5V/MDS-L5U1-5V
Rating / Performance
| Model | MDS-L5U-5V | MDS-L5U1-5V |
|---|---|---|
| Detection Surface | Upper side detection | |
| Detection Distance | 5mm±10％ | |
| Hysteresis | 15% or less of the detection distance | |
| Set Distance | 0 to 4.0 mm | |
| Standard Detection Target | Iron sheet of 20 × 20 mm and 1 mm in thickness | |
| Power Supply Voltage | 5 V DC (Operating voltage range : 4.5 V to 5.5 V DC) | |
| Current Consumption | 8 mA DC or less | |
| Output | 30 V DC , 50 mA DC or less NPN transistor open collector | |
| Output Residual Voltage | 1 V DC or less (Load current 50 mA DC) | |
| Operation Status | Normally open (ON output when detecting) | Normally closed (OFF output when detecting) |
| Operation Indicator | Red LED (Lit when the output is ON) | |
| Response Frequency | 500 Hz or more | |
| Temperature Range | -20 to 60 °C (-25 to 65 °C storage temperature range) (Without dew condensation or icing) | |
| Humidity Range | 35 to 85% RH (35 to 85% RH storage humidity range)(Without dew condensation) | |
| Dielectric strength | 500 V AC for 1 minute (Between the live part and case) | |
| Insulation Resistance | 50 MΩ or more at 500 V DC megger (Between the live part and case) | |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions for 2 hours each (at power off) | |
| Shock Resistance | 200 m/s2 (Approx. 20 G) in X, Y and Z directions 3 times each (at power off) | |
| Protection | IP50 | |
| Case Material | Polyarylate | |
| Connector | Connector: S3B-EH (3-pin)(from J.S.T. Mfg. Co., Ltd.) ［Connections］Housing: EHR-3, Contact: SEH-001T-P0.6 (from J.S.T. Mfg. Co., Ltd.) | |
| Weight | Approx. 5 g | |
| Options (Sold Separately) | Connector harness : CNH-S3B03S26-300 | |
*For a detailed specification of the other, please refer to specifications.

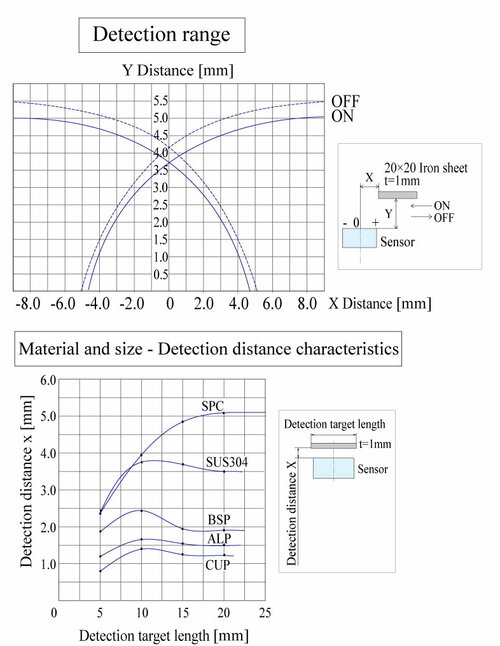

Characteristics Graph (Typical Example)
